Product Code: 3229459

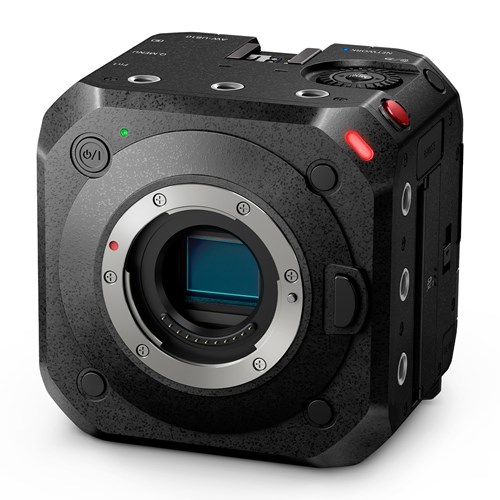

Panasonic AW-UB10E 4K Multipurpose Box Camera
Variants
Loading...
The Panasonic AW-UB10E is a compact 4K multipurpose box camera for broadcast, corporate, and live production environments. A 10.2MP MOS sensor and V-Log (13 stops dynamic range) deliver exceptional image quality, and with real-time autofocus, PoE+ power delivery, and IP-based transmission, it integrates into PTZ camera setups. 3G-SDI, HDMI, USB-C, and Genlock support ensure broad connectivity suitable for various productions.
Panasonic AW-UB10E 4K Multipurpose Box Camera Key Features:
- 4K multipurpose box camera for professional video production
- 10.2MP MOS full-frame sensor captures multiple subjects in a single frame
- V-Log with 13 stops dynamic range for superior colour grading
- Compact design under 10cm on all sides (excluding lens)
- Micro Four Thirds lens mount for broad lens compatibility
- Real-time recognition autofocus ensures precise subject tracking
- Supports IP transmission standards including NDI® HX2, RTMPS, and SRT
- Unified IP control protocol for use with Panasonic PTZ camera systems
- PoE+ support via LAN terminal for video, control, and power
- 3G-SDI OUT, HDMI Type A, and USB Type-C connectivity
- GENLOCK IN and TC IN/OUT for seamless multi-camera synchronisation
- Seamless integration with Media Production Suite for advanced workflows
- Optimised for corporate, broadcast, and live entertainment applications
- Box-style design based on LUMIX digital interchangeable lens technology
How to use the Panasonic AW-UB10E 4K Multipurpose Box Camera:
Record 4K video for professional productions
The Panasonic AW-UB10E records 4K video when space is limited, but high-quality imaging is required. Its 10.2MP Four-Thirds MOS full-frame sensor captures sharp, detailed visuals, and a primary colour filter ensures accurate colour reproduction. The camera’s Micro Four Thirds lens mount is compatible with a wide range of interchangeable lenses, so you can tailor the look of your video to your production. Its compact form allows for installation in various environments, making it ideal for broadcasting, corporate productions, and live events.
Capture sharp, colour-accurate footage with V-Log and Real-Time AF
Equipped with V-Log and 13 stops of dynamic range, the AW-UB10E ensures accurate colour reproduction and superior highlight retention, making it ideal for flexible post-production editing. Additionally, real-time recognition autofocus technology intelligently identifies and locks onto subjects, ensuring they remain sharp and well-defined throughout the recording. Providing consistently accurate autofocus makes it a strong choice for live productions.
Meet the demands of modern video production
The AW-UB10E is prepared for modern video production with support for MP4 and MOV recording formats, using both H.264/MPEG-4 AVC and H.265/HEVC codecs. H.265/HEVC offers better compression efficiency, maintaining high image quality while significantly reducing file sizes. This makes the AW-UB10E a strong choice for streaming, remote production, and long-duration recording, where storage and bandwidth optimisation are critical.
Broadcast and live stream with versatile connectivity
Panasonic’s AW-UB10E is equipped with GENLOCK IN and TC IN/OUT for professional multi-camera setups, ensuring frame-accurate synchronisation with other cameras. It also integrates seamlessly with Panasonic PTZ camera systems using a unified IP control protocol, making it well-suited for large-scale productions.
The camera simplifies installation with a range of connectivity options, including 3G-SDI OUT, HDMI Type A, USB Type-C, and LAN with PoE+. It provides stable, reliable signal transmission for high-end broadcasting and live production applications. For added flexibility, the LAN terminal is Power of Ethernet (PoE+) compatible, providing video transmission, control, and power via a single cable to reduce clutter in your setup.
What’s in the box?
- 1 x Panasonic AW-UB10E 4K Multipurpose Box Camera
FAQs:
Does the Panasonic AW-UB10E 4K Multipurpose Box Camera support internal recording, or is an external recorder required?
The AW-UB10E supports dual-slot recording using SD, SDHC, and SDXC memory cards, eliminating the need for an external recorder in many scenarios. It also supports UHS-I/UHS-II UHS Speed Class 3 and UHS-II Video Speed Class 90 cards, ensuring high-speed data transfer and reliable recording. This makes it ideal for applications requiring backup or extended recording durations without relying on external storage solutions.
Is the Panasonic AW-UB10E 4K Multipurpose Box Camera suitable for multi-camera setups?
The AW-UB10E integrates with IP-based production environments, with planned support for NDI® HX2, RTMPS, and SRT for streamlined video transmission. With unified IP control protocol compatibility, this camera works effortlessly alongside Panasonic PTZ camera systems, making it an excellent addition to multi-camera setups.
Back to topProduct Specification
| Audio Formats | LPCM (Linear Pulse Code Modulation), AAC |
| Dimensions | 93.0 mm x 93.0 mm x 78.0 mm |
| Dynamic Range | V-Log L: 13 stops |
| Effective Resolution | Approx. 10.3 megapixels |
| Frame Rates | Up to 60 fps for 4K recording, Up to 240 fps in Full HD (Variable Frame Rate) |
| Inputs | DC IN: 12 V (11.4–12.6 V), EIAJ Type 4, PoE+ (IEEE802.3at compliant), External Microphone: 3.5 mm jack, AUDIO IN: XLR (3-pin) x 2 (INPUT1, INPUT2), selectable LINE / MIC / MIC+48V, GENLOCK IN: BNC x 1 |
| Lens Mount | Micro Four Thirds |
| Operating Temperature | -10 °C to 40 °C (14 °F to 104 °F) |
| Outputs | HDMI: Type A, OUT: BNC x 1, 3G-SDI, Headphone: 3.5 mm jack, TC IN/OUT: BNC x 1, USB: USB Type-C (SuperSpeed USB3.1 GEN1), LAN: Remote control via RJ-45, PoE+ support |
| Power Supply | Lithium-ion battery pack: 7.28 V, AC Adapter (included): 12 V/3 A, PoE+ compatible hub: IEEE802.3at compliant |
| Recording Formats | MOV: H.265/HEVC, H.264/MPEG-4 AVC, LPCM, MP4: H.265/HEVC, H.264/MPEG-4 AVC, AAC, Variable Frame Rate (VFR) Support: Up to 240 fps in Full HD |
| Recording Media | SD Memory Card, SDHC Memory Card, and SDXC Memory Card for dual-slot recording (Slots 1 and 2 compatible with UHS-I/UHS-II UHS Speed Class 3 and UHS-II Video Speed Class 90) |
| Sensitivity|ISO Range | Standard: AUTO / ISO 160 to 51200, Extended: AUTO / ISO 80 to 204800 |
| Sensor Size | 4/3" |
| Sensor Type | Four-thirds MOS sensor (Approx. 11.90 megapixels, square pixel colour MOSsolid-state image sensor, primary colour filter) |
| Storage Temperature | -20 °C to 60 °C (-4 °F to 140 °F) |
| Weight | 545g |
