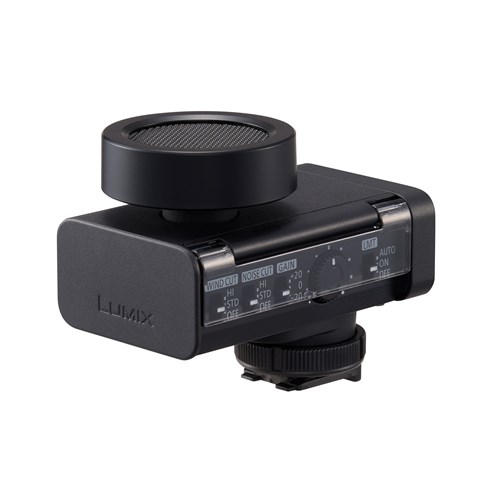

Panasonic DMW-DMS1E 32-bit Float Digital Microphone

Panasonic DMW-DMS1E 32-bit Float Digital Microphone Key Features:

• 4-channel electret condenser microphone for LUMIX cameras
• 32-bit float recording preserves detail across wide dynamic range
• Six selectable directional modes to suit any style of audio recording
• Internal shock mount reduces handling and vibration noise
• Wind cut and noise cut controls manage outdoor and ambient interference
• Backup recording mode captures safety track at –20 dB
• Cable-free hot shoe connection integrates directly with camera body
• Compact 100g design stays balanced on smaller LUMIX cameras

What's in the box?

• 1 x Panasonic DMW-DMS1E 32-bit Float Digital Microphone
• 1 x Windscreen
• 1 x Pouch

FAQs:

Which cameras support 32-bit float and backup recording?

32-bit float and backup recording require compatible LUMIX models, including the DC-S1M2, S1M2ES and S1RM2, with the latest firmware installed. Firmware updates are required to enable full functionality. On supported bodies, you can record 32-bit float internally without setting gain levels manually. Always check that both the camera and microphone firmware are up to date before critical shoots.

Do I need to set audio levels when recording in 32-bit float?

No. When using 32-bit float mode, the DMW-DMS1E maintains a fixed gain at 0 dB and captures a much wider dynamic range than standard 24-bit recording. In practice, this means sudden loud sounds are far less likely to clip, and users can raise quiet voices cleanly in post-production. It is particularly useful for solo operators who cannot constantly monitor levels. You still need good mic placement, but level setting becomes far less critical during recording.

How flexible are the directional modes?

The DMW-DMS1E offers six modes: forward cardioid, forward supercardioid, rearward supercardioid, bidirectional supercardioid, stereo at 90°, and wide stereo at 120°. That range lets you move from tight, front-facing interviews to environmental stereo without changing microphones. Switching is done via physical controls on the unit, so adjustments are quick and tactile. It is straightforward to match the pickup pattern to the framing.

Does it handle wind and handling noise well?

The internal shock-mount mechanism reduces vibration transferred from the camera body, which helps when working handheld. Wind Cut and Noise Cut offer OFF, STD and HI settings to manage low-frequency rumble or background noise. A supplied windscreen further reduces wind interference outdoors. Together, these controls help keep dialogue clean without relying entirely on post-processing.

What are the recording formats and channel options?

In linear mode, it records at 48 kHz or 96 kHz in 24-bit, with 2-channel or 4-channel options. In floating mode, it records 32-bit at 48 kHz or 96 kHz for 2 channels, and 48 kHz for 4 channels when backup audio is enabled. The maximum input level reaches 122 dBSPL or higher, with a dynamic range of 105 dB or greater. This gives enough headroom for raised voices or louder environments without distortion.
