Portkeys BM7 II DS Monitor
Portkeys BM7 II DS Monitor Image 0Portkeys BM7 II DS Monitor Image 1Portkeys BM7 II DS Monitor Image 2Portkeys BM7 II DS Monitor Image 3Portkeys BM7 II DS Monitor Image 4Portkeys BM7 II DS Monitor Image 5
Product Code: 3172106

Portkeys BM7 II DS Monitor

Special Order
This product is either directly despatched from our supplier or produced to order. Delivery usually takes at least 4 weeks. Order today and no payment will be taken until the item is in stock and ready to be despatched. Full details »
£995.00
Please Login or Register to add to your Wish List.

Flexible Finance Options Available Finance options available

Spread the cost over 12, 24 or 36 months

Pay in 3 interest-free payments with PayPal.svg Learn more

Back to top

The Portkeys BM7 II DS is a rugged 7-inch touchscreen monitor and an evolution based on the worldwide success of the BM5 III WR. This monitor features a maximum brightness of 2,200nits, HDMI input/output ports, two SDI inputs and one SDI output with HDMI cross conversion, and wired/wireless camera control capabilities.

Portkeys BM7 II DS Monitor Key Features:

  • 7-inch, 10-bit panel with a resolution of 1920 x 1080 and a 1000:1 contrast ratio
  • Daylight viewable with a maximum brightness of 2,200nits
  • Factory color-calibrated: 100% coverage of Rec.709 and 85% coverage of DCI-P3
  • 2 x 3G-SDI input, 1 x HDMI input, 1 x HDMI output, 1 x 3G-SDI output with cross-conversion

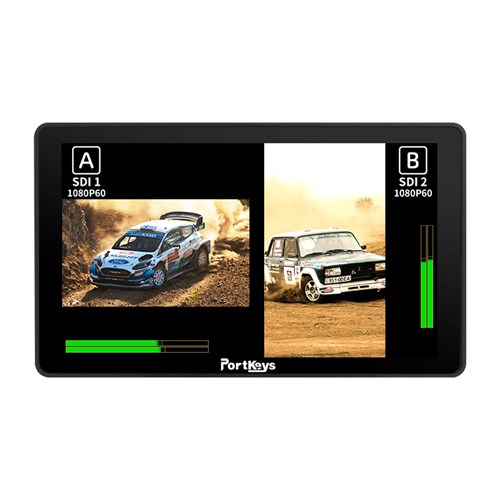

  • Split screen monitoring, you can monitor two video inputs simultaneously
  • Professional monitoring tools: Waveform, Vectorscope, Anamorphic, Peaking, ARRI False Color
  • 3D LUT monitoring and 3D LUT SDI output capabilities
  • RED Approved: wireless camera control for the RED Komodo and V-RAPTOR
  • Wireless camera control for most Sony and Blackmagic Design cameras
  • Wired camera control for RED, Sony, Canon, Panasonic, BMD, and ZCAM E2
  • Built-in dual Sony NP-F style battery plates
  • Built-in dual Sony NP-F style battery plates
  • Industry-standard 2-pin LEMO and 5.5mm barrel connector 7.4V-24V power inputs for external power
  • Custom JPG picture custom freeze frame
  • Rugged all-aluminium housing: only 460g/16.2oz

What's in the box?

  • 1 x Portkeys BM7 II DS Monitor
Back to top

Product Specification

Brightness 2200 nit
Connections 2 x 3G SDI, HDMI
Contrast Ratio 1000:1
Dimensions 179.3 x 106.8 x 31mm
Power Consumption 7-24V
Screen Size 7 Inches
Weight 490g
