Roland V40HD Multi-Format Video Switcher

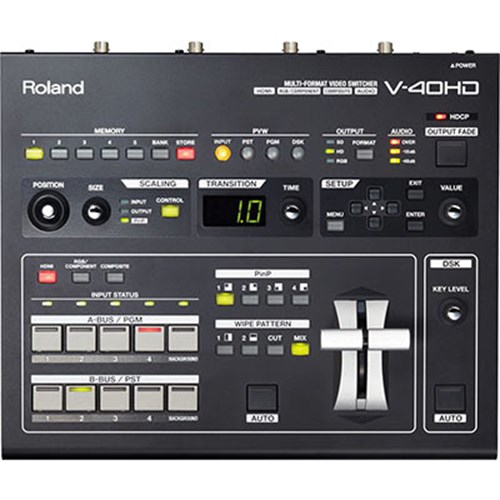

The Roland V-40HD Multi-Format Live Video Switcher is a welcomed addition to the powerful V-1600HD and V-800HD model lineup. The V-40HD is ideal for any live event or installation that requires the freedom to connect a variety of sources whether they be digital or analogue, computer or video format. It is positioned to support configurations using popular HDMI cameras as well as computers.

Key Features: Roland V40HD Multi-Format Video Switcher

• 4 Channels (12 Inputs - 4 x HDMI, RGB/Component, Composite)
• 3 Outputs (HDMI/RGB/Component/Composite+HDMI/RGB/Component + HDMI)
• 4:4:4/10-bit Internal Processing (*4:2:2/8-bit Output Processing)
• 1 M/E (PinP) + DSK
• Built-in frame synchronizers and scalers on all inputs
• Input status LEDs
• Full HDCP support
• Preview monitor output (Four-way split screen for Inputs, PST, PGM, or DSK)
• Audio embedding
• Audio delay to align the timing with video for perfect lip sync

Input

SCALING Zoom and Adjustment The V-40HD features scalers that let you make settings independently for every input source. With these, you can take input sources of different resolutions and adjust to any sizing.

INPUT Selectors Select from among HDMI, RGB/Component, and Composite as the connector for each input. With just one touch, you can access the video source from any of the three pieces of equipment connected to the respective inputs.

INPUT Connectors 1-4 - Support for three formats per input. (HDMI) Up to WUXGA, 1080p (RGB/Component) Up to WUXGA, 1080p (Composite) 480i or 576i HDMI inputs support an embedded audio signal.

AUDIO INPUT Mix analogue audio into HDMI video The V-40HD is equipped with inputs for analogue audio equipment. This enables you to embed analogue audio in the HDMI video output.

Output

OUTPUT Selectors Three types of output formats to choose from. Select SD, HD, or RGB simply by pressing a button.

PVW (Preview) Selectors Chooses the view displayed on a preview monitor. Select a four-way split screen, PST, PGM or DSK to display. *The resolution and refresh rate of monitor output is fixed at 1920 x 1080/60 Hz (progressive). *Use an HDMI monitor that supports HDCP and 60p signals. *When INPUT is selected (four-way split), the sources are displayed using a reduced frame rate.

Output Connectors Connect monitors, projectors, or recording equipment. (HDMI) Up to WUXGA, 1080p (RGB/Component) Up to WUXGA, 1080p (Composite) 480i or 576i *In HDCP mode, no video signals are output from the RGB/Component and composite connectors.

Effects

DSK - ( Downstream Keyer) Composite logos and text into output video. You can overlay logos and text onto composited and switched video. Scene transitions underneath logos or text that remain displayed is possible. - P in P Two images can be combined into one video image. You can select any of four positions for an inset screen: top left, bottom left, top right, or bottom right. You can also freely adjust the size of the inset screen.

WIPE PATTERN Easy selection of video transition effects.

VIDEO FADER: Switch the sources at the speed you want. Using the video fader (T-bar ) lets you carry out scene transitions, fade-ins, and fade-outs manually at exactly the speed you want.

Functions

MEMORY Save panel settings You can save the V-40HD's settings in internal memory. Each of the five memory banks can hold five sets of settings, letting you save a total of 25 configurations.

Control Interface

Controllable the V-40HD via any MIDI device A Roland digital audio mixer like the M-200i V-Mixer can link to the V-40HD for audio-follows-video application. Connect another V-40HD for more inputs.

Use RS-232C for integrated remote control It's possible to connect a computer, wall panel or other remote device and use it to control switching, effects, and other operations.

USB PORT For saving the internal memory This lets you connect a USB flash drive and save the internal memory to it.

For further information, visit Roland's website here.
