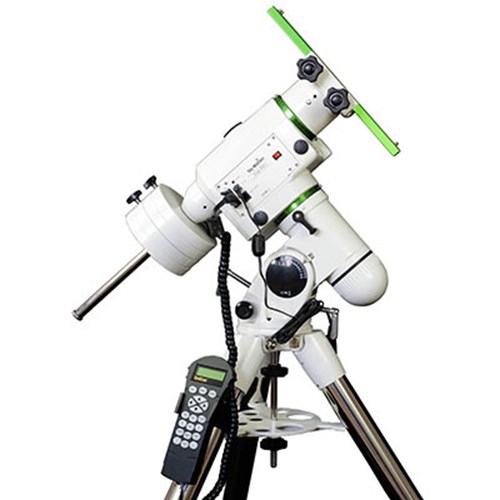

Sky-Watcher EQ6 PRO SkyScan GOTO Extra Heavy Duty Equatorial Mount and Tripod
We no longer sell this product and will not be receiving any new stock. Check below for availability of second-hand units.
| Condition | Availability |
|---|---|
| New | Discontinued - we can no longer source new stock of this product |
| Loading Alternatives | |
| View all used versions of the Sky-Watcher EQ6 PRO SkyScan GOTO Extra Heavy Duty Equatorial Mount and Tripod currently available » | |
For amateur astronomers seeking superior equatorial control and the ease of a precision computerized GOTO system, the EQ6 PRO SynScan is your answer. The Sky-Watcher EQ6 PRO SynScan is designed with the novice user in mind. With the user-friendly pushbutton hand control, locating and viewing the treasures of the night sky becomes as easy as a walk in the park. The hand control allows you to point the telescope at a specific object or even tour the skies at the touch of a button. The user-friendly menu system allows automatic slewing to over 42,000 + objects. Even an inexperienced astronomer can master its variety of features in a few observing sessions.
EQ6 PRO SynScan GO-TO Equatorial Mount:
The EQ6 SynScan also comes with features that advanced astronomers can appreciate:
- Positioning Accuracy up to 1 arc minute.
- Accuracy enhanced by software collimation error (mount mechanical error) compensation.
- Stepper motors with 1.8° step angle and 64 micro steps driven.
- Slewing speed up to 3.4°/sec (800X).
- Auto Guider Interface for astro-photography.
- Guiding speed selectable from 0.25X, 0.50X, 0.75X, or 1X.
- Object database containing complete M, NGC, and IC catalogues.
- Minimal vibration for steady long-exposure photography.
Specifications:
- Power Supply Required: 12 VDC 2Amp Tip positive (not supplied)
- Motor Type: Micro step driven 1.8° stepper motors
- Resolution: 0.144 arc sec (or 9,024,000 steps/rev.)
- Slew Speeds: 2X, 8X, 16X, 32X, 64X, 400X, 500X, 600X, 800X Gear Ratio: 705
- Tracking Rate: Sidereal, Lunar, Solar
- Tracking Modes: Dual Axis, R.A. Tracking
- Alignment Methods: One-star Alignment, Two-star Alignment, Three-star Alignment
- Database: 25 user defined objects. Complete M, NGC, and IC catalogues. Total 42,000 + objects.
Mount Specifications:
- EQ6 PRO Heavy-Duty Equatorial Mounts: Specially designed to support larger telescope tubes, these high-precision mounts feature engraved setting circles and a latitude scale, built-in polarscope & retractable counterweight shaft. The worm gears are preloaded with ball bearings for smooth tracking and slewing. Auto-guiding interface is also included for long-exposure astrophotography.
- Mount Type: German Equatorial
- Telescope Mounting: Tube Rings
- Slow-motion Control: R.A. & Dec (motor controlled)
- Tripod: 2" Diameter Stainless Steel Pipe
- Tripod Height: 85-147cm
- Tripod Weight: 7.5Kgs
- Counterweight Shaft Diameter: 1.8cm
- Counterweight Shaft Material: Stainless Steel
- Mount Weight: 16Kgs
- Mount Height: 41cm
- Counterweight: Two, 5.1Kgs each
- Counterweight Extension Bar
- Supplied with Sky-Watcher 45mm and 75mm dovetail saddle plates
- Total Weight: 23.5Kgs (counterweight not included)
Product Specification
| Counter Balance [kg] | 2x 5.1 |
| Go~To | 42,000 + objects |
| Maximum Height [cm] | 147.0 |
| Motor Drive | Micro step driven 1.8 degree stepper motors |
| Mount Type | Computerised Go To |
| Optical Tube Connection | Supplied with Sky-Watcher 45mm and 75mm dovetail saddle plates |
| Payload Capacity [kg] | 18.2 |
| Power Requirement | 12 VDC 2Amp Tip positive |
| Slow~Motion Control | Guiding speed selectable from 0.25X, 0.50X, 0.75X, or 1X |
| Tripod | 2 inch diameter stainless steel pipe |
| Weight [kg] | 23.50 |
| Manufacturers Link | Sky-Watcher |
