Product Code: 1008586

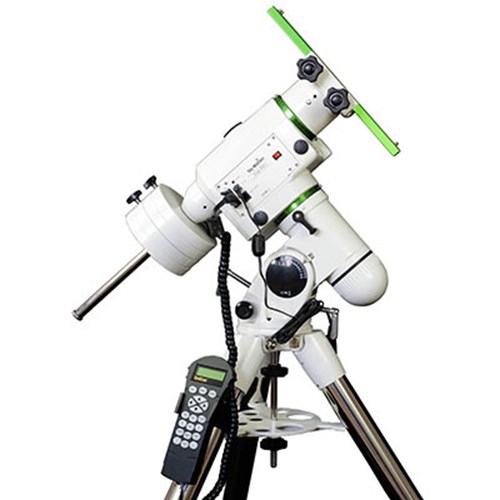

Sky-Watcher EQ6 PRO SkyScan GOTO Extra Heavy Duty Equatorial Mount and Tripod

Awaiting Stock
This product is currently out of stock. Order today and we will place you on a waiting list fulfilled first-come, first-served when stock is received. No payment will be taken until the item is in stock and ready to be despatched. Full details »

Thinking of upgrading? Trade in today

£1,319.00

1x Sky-Watcher EQ6 PRO SkyScan GOTO Extra Heavy Duty Equatorial Mount and Tripod Sorry, there are no more available.

Please Login or Register to add to your Wish List.
Back to top

EQ6 PRO SynScan GO-TO Equatorial Mount:

The EQ6 SynScan also comes with features that advanced astronomers can appreciate:

  • Positioning Accuracy up to 1 arc minute.
  • Accuracy enhanced by software collimation error (mount mechanical error) compensation.
  • Stepper motors with 1.8° step angle and 64 micro steps driven.
  • Slewing speed up to 3.4°/sec (800X).
  • Auto Guider Interface for astro-photography.
  • Guiding speed selectable from 0.25X, 0.50X, 0.75X, or 1X.
  • Object database containing complete M, NGC, and IC catalogues.
  • Minimal vibration for steady long-exposure photography.

Specifications:

  • Power Supply Required: 12 VDC 2Amp Tip positive (not supplied)
  • Motor Type: Micro step driven 1.8° stepper motors
  • Resolution: 0.144 arc sec (or 9,024,000 steps/rev.)
  • Slew Speeds: 2X, 8X, 16X, 32X, 64X, 400X, 500X, 600X, 800X Gear Ratio: 705
  • Tracking Rate: Sidereal, Lunar, Solar
  • Tracking Modes: Dual Axis, R.A. Tracking
  • Alignment Methods: One-star Alignment, Two-star Alignment, Three-star Alignment
  • Database: 25 user defined objects. Complete M, NGC, and IC catalogues. Total 42,000 + objects.

Mount Specifications:

  • EQ6 PRO Heavy-Duty Equatorial Mounts: Specially designed to support larger telescope tubes, these high-precision mounts feature engraved setting circles and a latitude scale, built-in polarscope & retractable counterweight shaft. The worm gears are preloaded with ball bearings for smooth tracking and slewing. Auto-guiding interface is also included for long-exposure astrophotography.
  • Mount Type: German Equatorial
  • Telescope Mounting: Tube Rings
  • Slow-motion Control: R.A. & Dec (motor controlled)
  • Tripod: 2' Diameter Stainless Steel Pipe
  • Tripod Height: 85-147cm
  • Tripod Weight: 7.5Kgs
  • Counterweight Shaft Diameter: 1.8cm
  • Counterweight Shaft Material: Stainless Steel
  • Mount Weight: 16Kgs
  • Mount Height: 41cm
  • Counterweight: Two, 5.1Kgs each
  • Counterweight Extension Bar
  • Supplied with Sky-Watcher 45mm and 75mm dovetail saddle plates
  • Total Weight: 23.5Kgs (counterweight not included)
Back to top

Product Specification

Counter Balance [kg] 2x 5.1
Go~To 42,000 + objects
Maximum Height [cm] 147.0
Motor Drive Micro step driven 1.8 degree stepper motors
Mount Type Computerised Go To
Optical Tube Connection Supplied with Sky-Watcher 45mm and 75mm dovetail saddle plates
Payload Capacity [kg] 18.2
Power Requirement 12 VDC 2Amp Tip positive
Slow~Motion Control Guiding speed selectable from 0.25X, 0.50X, 0.75X, or 1X
Tripod 2 inch diameter stainless steel pipe
Weight [kg] 23.50
Manufacturers Link Sky-Watcher
