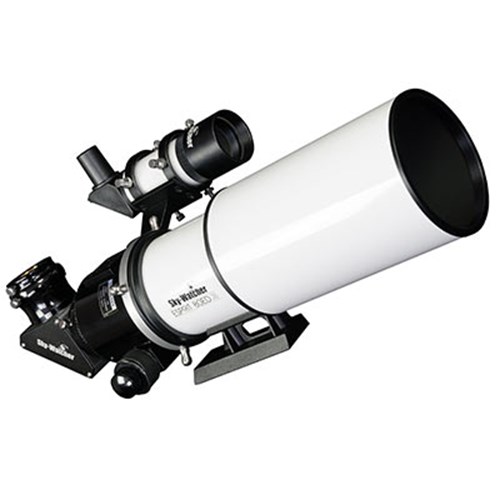

Sky-Watcher Esprit-80ED Professional Super APO Triplet Refractor OTA
The Sky-Watcher Esprit-80ED Professional Super APO Triplet Refractor OTA are instruments of the highest quality with optical performance rivalling or exceeding similar telescopes of even the most famous high-end telescope brands. The Esprit Super Apo Triplets are designed for the most demanding astro-imagers, for use with the optional M48 field flattener, but are also fine telescopes for visual observations. The premium, superbly-corrected optical systems deliver high-contrast images full of detail and zero detectable colour fringing, even on the brightest of objects.
The Main Features
- 3-Element Objective Lens, Focal Length 400mm (one Ohara FPL-53 ED element)
- 2.7" CNC Machined 11:1 Dual-Speed Linear Power Focuser
- Zero detectable Colour Fringing even on Bright Objects
- Metallic High-Transmission Lens Coatings
- Knife-edge Baffled Optical System
- High-precision Mechanical Components
- Aluminium OTA material (superior to plain carbon-fibre for this application)
- Fixed Dew Shield
- OTA Weight 3.97kg (without accessories)
2.7" Dual-speed Linear Power Focuser
- 2.7" LPF with 2" and 1.25" eyepiece adaptors and indexed scale
- Zero focus-shift during focusing
- High Load Capacity
- The smooth focus motion and 11:1 fine focus wheel allows precision adjustment and critical focusing of eyepieces & cameras
Accessories Supplied:
- 2" Dielectric Star Diagonal
- 9x50 Right-Angled Erect Image Finderscope
- 45mm Dovetail Mounting Shoe
- Heavy Duty Foam-Lined Storage/Transportation Case with Wheels
Product Specification
Diagonal | 2 Inch Dielectric Star Diagonal |
Diameter [mm] | 80.0 |
Eyepiece 1 | None supplied |
Finderscope | 9x50 Right Angled, Erect Image Finderscope |
Focal Length [mm] | 400 |
Focal Ratio [f|] | 5.00 |
Highest Practical Magnification [x] | 120 |
Mount Type | Optical Tube Assembly Only |
Optical Design | ED Apochromatic |
Optical Tube Length [mm] | 450 |
Optical Tube Weight [kg] | 3.97 |
Manufacturers Link | Sky-Watcher |
