Product Code: 1683498

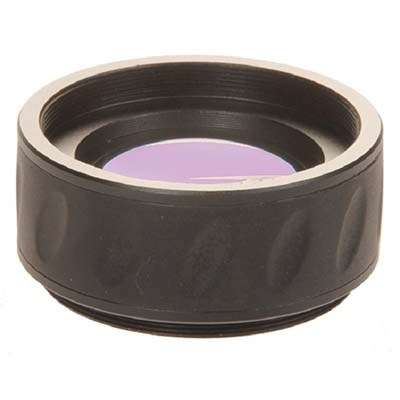

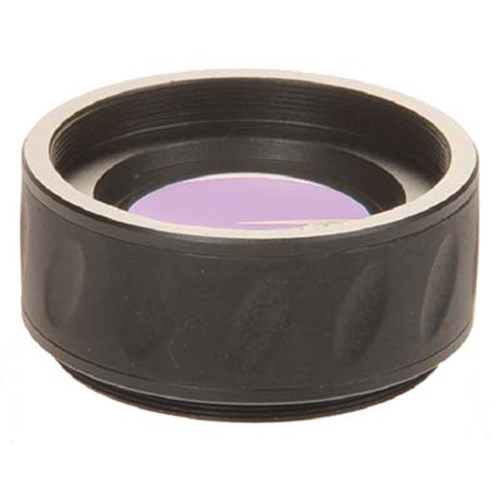

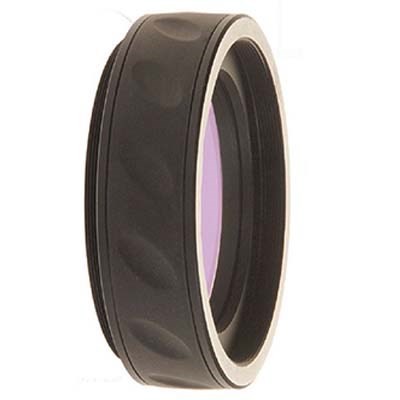

Sky-Watcher M48 Field Flattener for Esprit 100

Special Order
This product is either directly despatched from our supplier or produced to order. Delivery usually takes at least 4 weeks. Order today and no payment will be taken until the item is in stock and ready to be despatched. Full details »

Thinking of upgrading? Trade in today


1x Sky-Watcher M48 Field Flattener for Esprit 100 Sorry, there are no more available.

Please Login or Register to add to your Wish List.

Finance options available

Back to top

Correct the field curvature of the Esprit 100 with this Sky-Watcher M48 Field Flattener. It offers a clear and wide aperture to ensure minimum halation while increasing the refractor’s imaging circle to 40 mm. An effective addition to the triplet refractor, this doublet field flattener uses a precision thread to keep the lens groups aligned to the optical axis and perpendicular to the image.

Sky Watcher M48 Field Flattener for Esprit 100 Key Features:

  • Designed for CCD and DSLR imaging
  • Suitable to minimise the distortion and enhance the sharpness
  • Compatible with the Esprit 100 ED PRO triplet refractor
  • 40 mm imaging circle is achieved when used with the field flattener
  • Precision thread aligns the doublet and triplet lens groups on the optical axis
  • Lens groups are perpendicular to the images in focus
  • Easily installed between the refractor and a camera
  • What's in the box?

  • 1 x Sky-Watcher M48 Field Flattener for Esprit 100
  • Limited 2-Year Warranty
  • FAQs:

    What is the main purpose of a field flattener and is it necessary?

    A field flattener is generally used to clear out the distortions and halation during observations. When you place the flattener properly in-between the Esprit 100 refractor and a camera, you would see sharp images. It evens out the field and provides a wide aperture.

    What is the benefit of a precision thread?

    The precision thread aligns the lens groups (doublet and triplet) on the optical axis and ensures that they are perpendicular to the image. This makes sure that you always get a sharp and clear view.

    Where is this field flattener attached?

    The Sky-Watcher flattener is installed in the middle of the Esprit 100 refractor and a camera.

    Can it be used with a DSLR?

    This is specially designed for DSLR and CCD imaging purposes.

    What is the refractor’s imaging circle when used with the Sky-Watcher M48?

    The imaging circle is 40 mm when used with the M48 field flattener.

    Back to top

    Product Specification

    For Use With Sky-Watcher Esprit 100ED Triplet Refractor
    Type Field-Flattener
    Back to top
    Back to top
    Back to top
    Product Code: 1683498-wex Manufacturers Part Number: 20188
