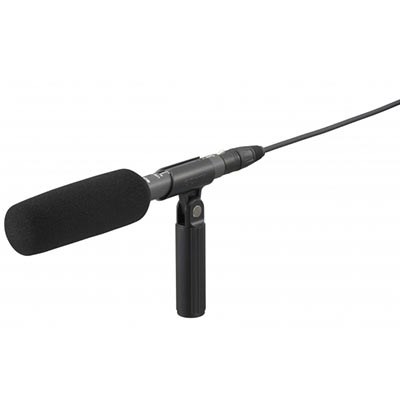

The Sony ECM-678 is equipped with a newly-developed microphone capsule and delivers superior sensitivity with extremely low inherent noise. This microphone balances compact size with excellent performance, resulting in a highly directional unit that is only 250 mm in length.

Key Features: Sony ECM-678 Electret Condenser Shotgun

  • High durability and reliability
  • Flat-and-wide frequency response
  • Compact size
  • Built-in low-cut filter

Specifications

  • Capsule Type: Mono electret condenser
  • Frequency Response: 40 Hz to 20 kHz
  • Directivity: Uni-directional (super-cardioid)
  • Sensitivity *(1): -26 dB ±3 dB
  • Output Impedance *(2): 220O±20%, Balanced
  • Dynamic Range: 111 dB or more
  • Signal-to-Noise Ratio *(3): 78 dB or more
  • Inherent Noise *(4): 16 dB SPL or less
  • Induction Noise From External Magnetic Field *(5): 0 dB SPL or less
  • Wind Noise *(6): 50 dB SPL (without windscreen)
  • Maximum Input Sound Pressure Level *(7): 127 dB SPL
  • Connector: XLR-3-12C (male)
  • Mic Cable:
    • XLR-3 to XLR-3
    • 480 mm (18.9”)
  • Power Requirements: External, DC 48 V +/- 4 V
  • Dimensions *(8): f20 x 250 mm (f0.8 x 9.8”)
  • Weight: Approx. 200 g (7.1 oz)
  • Supplied Accessories:
    • Windscreen (1)
    • Stand adaptor (2)
    • Short LR cable (for camcorder use) (1)
    • Operating instructions (1)
    • Mic spacer (2)
    • Mic holder (1)
    • Carrying case (1)

Notes
*(1) 0 dB = 1 V/Pa, at 1 kHz
*(2) Output impedance at 1 kHz
*(3) A-weighted, 1 kHz, 1 Pa.
*(4) 0dB SPL = 20? Pa.
*(5) dB SPL/1E-7 T, 0 dB SPL = 20? Pa.
*(6) Wind noise at 2m/s (0 dB SPL = 20?Pa.)
*(8) The values for dimensions are approximate
