Sony ECM-77B Electret Condenser Miniature Lavalier Microphone
Product Code: 1632595

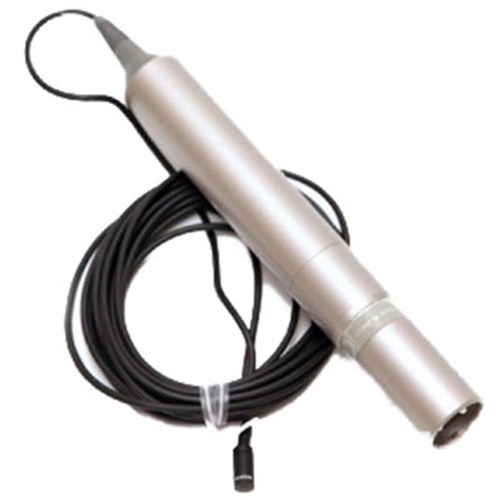

Sony ECM-77B Electret Condenser Miniature Lavalier Microphone

Special Order
This product is either directly despatched from our supplier or produced to order. Delivery usually takes at least 4 weeks. Order today and no payment will be taken until the item is in stock and ready to be despatched. Full details »
£503.00

1x Sony ECM-77B Electret Condenser Miniature Lavalier Microphone Sorry, there are no more available.

Please Login or Register to add to your Wish List.
Back to top
The Sony ECM-77B is a miniature omni-directional lavalier microphone designed for professional broadcast, sound reinforcement, and recording applications. The condenser element has a miniature profile, allowing it to be easily concealed in performance and broadcast situations. Its omni-directional pick-up pattern provides even frequency and sensitivity response.

Key Features: Sony ECM-77B Electret Condenser Miniature Lavalier Microphone

  • Omni-directional pattern provides even sensitivity and frequency response
  • Powered with a single AA alkaline battery or external 48 V phantom power
  • Unobtrusive profile enables easy concealment in broadcast and performance situations
  • Features a standard 3-pin XLR male connection

Specifications

  • Capsule Type: Electret condenser
  • Frequency Response: 40 Hz to 20 kHz
  • Directivity: Omni-directional
  • Sensitivity *(1): -39.0 dB (11.2 mV)
  • Output Impedance *(2): 2.5kO±30%, unbalanced
  • Dynamic Range: 90 dB or more
  • Signal-to-Noise Ratio *(3): 64 dB or more
  • Inherent Noise *(4): 30 dB SPL or less
  • Induction Noise From External Magnetic Field *(5): 5 dB SPL or less
  • Wind Noise *(6): 40 dB SPL (with windscreen)
  • Maximum Input Sound Pressure Level *(7): 120 dB SPL
  • Connector: XLR-3-12C (male)
  • Mic Cable: 1.2 m (3.9 feet)
  • Power Requirements: DC 1.1 V to 10.0 V
  • Power consumption: 0.4 mA or less
  • Dimensions *(8): 5.6 x 12.5 mm (f0.25 x 0.5”)
  • Weight: Approx. 25.5n g (0.9 oz)
  • Supplied Accessories:
    • Single/horizontal type tie clip (1)
    • Metal-mesh type windscreen (1)

Notes
*(1) 0 dB = 1 V/Pa, at 1 kHz
*(2) Output impedance at 1 kHz
*(3) A-weighted, 1 kHz, 1 Pa.
*(4) 0dB SPL = 20? Pa.
*(5) dB SPL/1E-7 T, 0 dB SPL = 20? Pa.
*(6) Wind noise at 2m/s (0 dB SPL = 20?Pa.)
*(8) The values for dimensions are approximate
