Sony PDT-FP1 Portable Data Transmitter
Product Code: 3154873

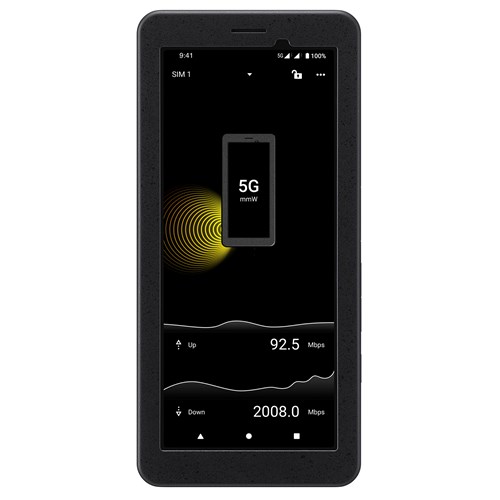

Sony PDT-FP1 Portable Data Transmitter

Special Order
This product is either directly despatched from our supplier or produced to order. Delivery usually takes at least 4 weeks. Order today and no payment will be taken until the item is in stock and ready to be despatched. Full details »

Thinking of upgrading? Trade in today

£1,150.00
Please Login or Register to add to your Wish List.

Flexible Finance Options Available Finance options available

Spread the cost over 12, 24 or 36 months
Back to top

Facilitating creators in bringing their ideas to life, the PDT-FP1 serves as a portable data transmitter. With its smart antenna design, effective heat dissipation mechanism, and flexible input interfaces, it ensures smooth and stable communication, perfectly suited for professional needs. Encased in a compact, user-friendly device, it simplifies the process of connectivity without compromising efficiency.

Sony PDT-FP1 Portable Data Transmitter Key Features:

  • High-speed stable communication with simple operability
  • Optimised antenna design for high-speed data transmission
  • Heat dissipation system for enhanced reliability
  • Wide compatibility for livestreaming via HDMI or USB connection
  • Dual SIM3 with automatic switchover to fastest available network
  • Versatile input interfaces including; HDMI, USB-C and LAN
  • Uninterrupted power supply with two USB-Type-C with PD
  • Camera Wired Connection for automatic photos/videos transfer to FTP
  • Network Visualiser app for monitoring network conditions while transferring data
  • Standard ¼ inch tripod screw hole for versatile mounting and strap hole for cable management
  • 256GB internal storage expandable via micro SD card slot up to 1TB

Optimised antenna design for high-speed data transmission

The antenna design is optimised to maximise reception sensitivity, enabling high-speed, low-latency communication over a wide range of bands including LTE, and both 5G Sub6 and mmWave.

Many compatible communication bands

With its optimised antenna design and wide variety of compatible communication environments, including both local and private 5G, the PDT-FP1 enables fast and efficient data transmission worldwide. It also supports Dual SIM4for transmitting data while automatically switching to a stronger network.

Heat dissipation system for enhanced reliability

To ensure reliability in challenging environments, the PDT-FP1 incorporates a newly developed cooling fan and a duct structure designed for heat dissipation and quiet operation. It effectively prevents thermal shutdown, even in temperatures as high as 40℃ (104℉), for continuous transmission during shooting.

Uninterrupted power supply

The PDT-FP1 is equipped with two USB Type-C terminals that support USB PD (Power Delivery). One handles both data communication and charging, while the other is solely for charging. With these terminals, the PDT-FP1 can be charged while transferring data, allowing you to shoot without worrying about the battery level.

Versatile input interfaces

The PDT-FP1 offers versatile input interfaces, ensuring fast and stable data communication. As well as a USB Type-C terminal for data transfer, a wired LAN terminal can connect to a compatible camera for data transfer, and an HDMI Type A terminal is also provided for video data transmission.

Expandable storage

The PDT-FP1 is equipped with 256 GB of internal storage, expandable up to 1 TB with the optional microSD card. This allows for stable data transfers while ensuring ample storage space.

Quick file transfer for photographers

Effortlessly transfer files to a designated FTP server or Creators' App by connecting compatible Sony cameras via USB or Ethernet. Once the initial setup is complete, the 'Camera Wired Connection' setting will automatically transfer files without the need to configure settings each time.

File transfer and live streaming for videographers

The 'Camera Wired Connection' setting offers automatic file delivery to C3 Portal and Ci Media Cloud for improved workflow. Also, high-quality live streaming is possible by using the optional CBK-RPU7 and M2 Live. Together with its large 6.1-inch display and "Network Visualiser," transfer status can be visibly monitored before and while shooting.

Professional setup

The PDT-FP1 features a 1/4-inch tripod screw hole on the rear for attaching to a tripod or camera, and a strap hole for effective cable management.

Key Specifications:

  • Data transfer: USB Type-C (SuperSpeed USB 5 Gbps (USB3.2))
  • Charging: USB Type-C
  • HDMI connector: Type-A: 3840x2160 (60p/50p/30p/25p/24p), 1920x1080 (60p/50p/30p/25p/24p), 1280x720(60p/50p/30p/25p/24p), 720x480 (60p), 720x576 (50p), 640x480 (60p)
  • LAN Terminal: 10BASE-T, 100BASE-TX, 1000BASE-T
  • Type of fan: DC FAN approx. 5.0 mm thick
  • Air flow: Approx. 51 L/min
  • Heat sync size: Approx. 37.15 mm x 19.3 mm x 7.3 mm
  • Operating temperature: 0 - 40 ℃ / 32 - 104 °F
  • LTE Band: 1, 2, 3, 4, 5, 7, 8, 11, 12, 13, 17, 18, 19, 20, 21, 25, 26, 28, 29, 30, 32, 34, 38, 39, 40, 41, 42, 46, 48, 66, 71
  • Wi-Fi: IEEE802.11a/b/g/n/ac/ax, 2.4/5/6GHz
  • Wi-Fi tethering: Up to 10 devices
  • 5G (Sub6) Band: NSA: n1, n2, n3, n5, n7, n8, n20, n25, n28, n30, n38, n40, n41, n66, n71, n77, n78, n79 SA: n1, n2, n3, n5, n7, n8, n20, n25, n28, n38, n40, n41, n48, n66, n71, n77, n78, n79
  • 5G (mmWave) Band: n257, n258, n260, n261
  • Maximum throughput (5G): Uplink: Up to 1.1 Gbps / Downlink: Up to 8.1 Gbps
  • Accessibility: Select to Speak, TalkBack, Text-to-speech output, Font size, Display size, Dark theme, Magnification, Colour correction, Colour inversion, Large mouse pointer, Remove animations, Accessibility Menu, Switch Access, Click after mouse pointer stops moving, Auto-rotate screen, Touch & hold delay, Time to take action (Accessibility timeout), Vibration & haptic strength, System navigation, Mono audio, Audio balance, Caption preferences, High contrast text, Shortcut from lock screen
  • Charging time: Approx. 115 minutes
  • Power delivery: Yes (USB Power Delivery)
  • Operating time (FTP transfer via USB in LTE): Approx. 4 hours
  • Operating time (Video upload via HDMI): Approx. 2 hours
  • Standby time (LTE): Approx. 600 hours
  • Standby time (5G SA): Approx. 450 hours
  • Dimension: Approx. 6.7 inch x 3.2 inch x 1.1 inch (HxWxD)
  • Weight: Approx. 10.9 oz.
  • OS: Android 13
  • CPU: Snapdragon 8 Gen 2 Mobile Platform
  • Internal memory (RAM/ROM): 8 GB / 256 GB
  • External memory: Up to 1 TB (microSD/microSDHC/microSDXC)
  • Battery: Lithium-ion battery (5000 mAh)
  • 2D Code Scanner: Yes
  • SIM type: nanoSIM / eSIM
  • Dual SIM specification: DSDS
  • Bluetooth: Bluetooth 5.3 wireless technology
  • Display: OLED (1080x2520), 6.1 inch
  • Speaker: Yes
  • GPS: A-GPS, A-GLONASS, Beidou, Galileo, QZSS

Sony PDT-FP1 Portable Data Transmitter Product Video:

Introducing PDT-FP1 | Sony | Portable Data Transmitter
