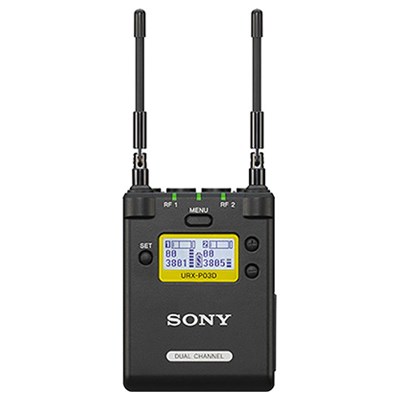

Sony URX-P03D/K33 UWP-D Portable 2-Channel Receiver

The URX-P03D 2-channel portable receiver is part of a complete UWP-D audio system with digital audio processing and the reliability of analogue FM modulation. The receiver also has external mic input for an additional wired microphone and 3-channel mixer function. The UWP-D Series system provides superb transient response performance for studio and location production applications.

Key Features: Sony URX-P03D/K33 UWP-D Portable 2-Channel Receiver

• 2-channel portable receiver
• Digital Audio Processing for high quality sound compared to conventional analogue wireless systems
• External mic input for additional wired microphone
• Wide frequency coverage with choice of channels available
• Large display and small size receiver for ease of use
• Fits neatly on any size of camcorder or DSLR camera
• Automatic channel setting function
• Headphone output
• USB connection for power supply
• Line input availability

Specifications

• Oscillator Type: Crystal-controlled PLL Synthesizer
• Reception Type: Space diversity*
*True Diversity for 1ch use / Dynamic Switching Diversity for 2ch use
• Antenna Type: 1/4 wave length wire
• Carrier Frequencies: CE33: 566.025 MHz to 633.000 MHz (not available in New Zealand)
• Frequency Response: 23Hz to 18kHz (typical)
• Signal-to-Noise Ratio: 96dB (max deviation, A-weighted)
• Distortion (T.H.D): 0.9% or less (-60dBV, 1kHz input)
• Audio Delay: Approx. 0.375 msec
• Analog Input: 3-pole mini jack, unbalanced
• Analog Input Level: -50dBV (±12dB Adjustable, 3-dB step)
• Analog Output: 3-pole mini jack, unbalanced
• Analog Output Level: -60 dBV (at ±5 kHz deviation)
• Analog Output Adjust Range: -12dB - +12 dB (3 dB step)
• Headphone Output: f3.5 mm (5/32") stereo mini jack
• Headphone Output Level: 5 mW (at 16-ohm load)
• Pilot Tone Signal: 32 kHz/ 32.382 kHz/ 32.768 kHz
• Display: LCD
• Power Requirements:
• DC 3.0 V (with 2 AA-size alkaline (LR6) batteries)
• DC 5.0V (via USB micro-B)
• Battery Operating Time: Approx. 5 hours with Sony's AA-size alkaline (LR6) batteries at 25ºC (77ºF)
• Operating Temperature: 0°C to 50°C (32°F to 122°F)
• Storage/Transport Temperature: -20°C to +55°C (-4°F to +131°F)
• Dimensions (W x H x D): 63 x 82 x 28.4 mm (excluding the antennas)
• Weight: Approx. 210 g (including batteries)
