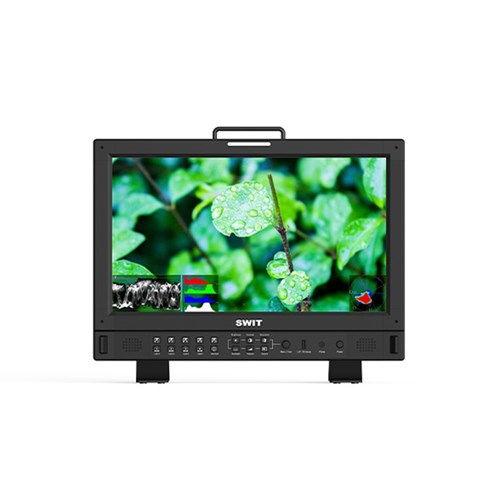

Swit BM-U175 - 17Inch 8K 4x12GSDI HDR Zero-Delay Reference UHD Monitor with Auto-Calibration
Designed for video monitoring, the Swit BM-U175 Studio Monitor delivers stunning visual clarity, making it the ideal choice for critical production and post-production tasks. With advanced colour accuracy, HDR support, and 4K resolution, it ensures precise and true-to-life image representation. The monitor boasts a versatile range of connectivity options, including 12G-SDI, HDMI, and IP inputs.
Swit BM-U175 Studio Monitor Key Features:
- Features a 17.3-inch UHD display with a 4K resolution, delivering stunning visual clarity and detail
- Ensures exceptional colour accuracy for precise and true-to-life image representation
- Supports HDR for enhanced contrast and richer, more vibrant colours
- Offers a range of connectivity options, including 12G-SDI, HDMI, and IP inputs
- Uses advanced waveform and vectorscope tools to assist with colour calibration
- Includes a 4K HDMI loop-through output, allowing for easy signal distribution
- Features an ergonomic design, providing flexibility in positioning and setup
- Enables customisable colour grading using 3D lookup tables (LUTs) for fine-tuning
- Offers wide viewing angles for accurate image quality even when viewed from different angles
- Enables remote control and monitoring via Ethernet connectivity for adjustments
- Features a robust build to withstand the rigours of studio and OB van environments
- Features a robust build to withstand the rigours of studio and OB van environments
- Supports multiple languages, making it accessible to a diverse range of users
- Allows you to view multiple video sources simultaneously with PiP functionality
- Offers audio and video monitoring capabilities for comprehensive production control
What's in the box?
- 1 x Swit BM-U175 Studio Monitor
- 1 x V-Mount or Gold Mount Battery Plate
- 2 x Rack Ear
- 2 x Desktop Foot
- Limited 2-Year Warranty
FAQs:
How do I remotely control the monitor via Ethernet connectivity?
The monitor can be controlled and monitored remotely via Ethernet using compatible software or control systems for seamless operation.
Can I use the monitor for colour grading and post-production work?
The Swit BM-U175 is suitable for colour-critical tasks, thanks to its advanced colour accuracy, customisable colour grading features, and support for 3D LUTs.
What is the advantage of HDR support?
The HDR (High Dynamic Range) support enhances contrast and provides a wider colour gamut, resulting in more vibrant and lifelike images. It's particularly beneficial for monitoring content created in HDR formats.
Back to topProduct Specification
| Audio Monitoring | Yes |
| Brightness | 300cd/m2 |
| Connections | 4 x BNC, 1 x RS485, 1 x 3.5mm headphone and speaker |
| Contrast Ratio | 800:1 |
| Dimensions | H43.6 x W31 x D8.8 cm |
| Included Accessories | 1 x V-mount or Gold mount plate, 1 x 19" Rack Ears, 1 x Desktop feet |
| LUT Support | Yes |
| Monitor Features | Waveform, Vector, Histogram |
| Power Consumption | ≤60W |
| Power Options | Battery Power DC 12-17V Power |
| Recording Formats and Framerates | 4096×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) 3840×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) 2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) 2048×1080i (50 / 59.94 / 60) 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) 1080i (60 / 59.94 / 50) 1080psf (30 / 29.97 / 25 / 24 / 23.98) 720p (60 / 59.94 / 50) 480i (59.94), 576I (50) |
| Resolution | 3840x2160 |
| Screen Size | 17 Inches |
| Weight | 5.9kg |
| Manufacturers Link | Swit |
