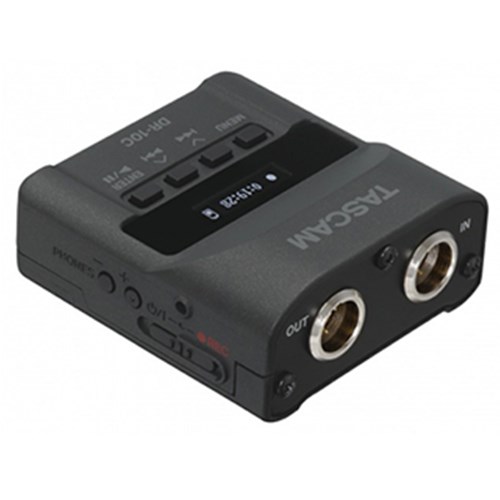

Tascam DR-10CH Recorder for Lavalier Microphones

The Tascam DR-10CH Recorder is designed to connect to Lavalier microphones to create a compact recording system that fits on a belt pack. Created for Shure systems, this recorder features a Mini XLR 4-pin input and a Mini XLR 4-pin output, allowing it to be used as either a standalone recorder or with a wireless transmitter. The DR-10CH runs off a single AAA battery and records to a microSD card.

Key Features: Tascam DR-10CH Recorder for Lavalier Microphones

• Micro linear PCM recorder for lavalier microphones
• Can be connected between a lavalier microphone and a wireless transmitter to provide a backup recording
• Mono BWF recording at 48 kHz sample rate and 24-bit resolution
• Records to microSD/microSDHC card (up to 32 GB)
• Dual recording function allows two files to be recorded simultaneously at different levels to provide a safety track in case of distortion
• Hold function prevents accidentally switching off the recorder
• Mini XLR 4-pin Male output and input connectors
• Switchable limiter to prevent clipping
• Switchable low-cut filter conveniently reduces low-frequency noise
• Auto gain control
• Time Track increment function writes new track after a preset amount of time (switchable on/off)
• Playback function for checking recordings via headphones
• Headphones output
• Built-in clock for storing time information with recordings
• OLED display with great visibility
• Micro USB-B connector for easy data transfer with a computer
• Power supply through one AAA battery/rechargeable or USB connection
• More than eight hours recording with a single AAA battery
• Settings can be created in a text file on a computer and transferred to the DR-10C via USB
• Infrared data communication allows setting information to be transferred to other DR-10C recorders
• Firmware update possible using the microSD card
