Product Code: 3120879

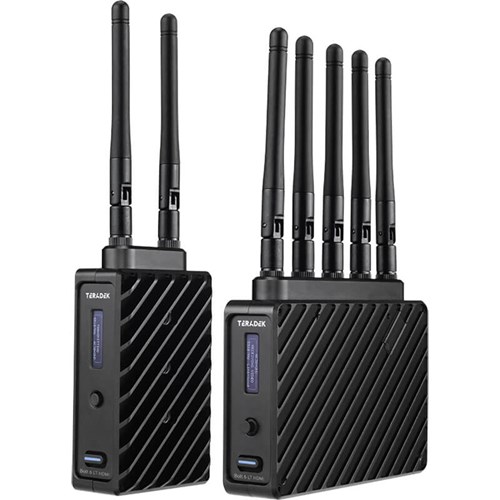

Teradek Bolt 6 LT HDMI 750 HDMI TX/RX Kit V-Mount
Special Order
This product is either directly despatched from our supplier or produced to order. Delivery usually takes at least 4 weeks. Order today and no payment will be taken until the item is in stock and ready to be despatched.
Full details »
The Bolt 6 LT Set is a real-time wireless video transmission system that supports 4K video with Teradek’s patented Zero-Delay technology, now with less interference using the newly opened 6GHz wireless frequency. Bolt 6 LT can send and receive color-accurate, True-HDR videos in under 0.001 seconds using the set’s included Bolt 6 LT video Transmitter and Receiver. More
Finance options available
The Bolt 6 LT Set is a real-time wireless video transmission system that supports 4K video with Teradek’s patented Zero-Delay technology, now with less interference using the newly opened 6GHz wireless frequency. Bolt 6 LT can send and receive color-accurate, True-HDR videos in under 0.001 seconds using the set’s included Bolt 6 LT video Transmitter and Receiver.
Key Features:
- Real-time wireless video transmission system that supports 4K video with Teradek’s patented Zero-Delay technology
- Zero Delay
- 6GHz Wireless Frequency Access
- Bolt 4K Cross-Compatibility
- Improved Long Range Mode
- Inputs: LT: HDMI, 3G-SDI / LT HDMI: HDMI
- Outputs: LT: HDMI, 3G-SDI / LT HDMI: HDMI
Key features of the Bolt 6 LT Set include range options designed for a variety of production needs, fast reconnection times, an intuitive, easy setup with the Bolt Manager App for iOS or Android, and consistent, stable connectivity. The Bolt 6 LT series utilizes the 6GHz band to give users better image quality and reduced interference. And when used in high-traffic areas, 6GHz wireless frequency gives Bolt 6 LT users more options for frequency adjustments with 12 new channels. Bolt 6 can also pass metadata, timecode, and start/stop flags from most camera manufacturers.
Bolt 6 also offers new tools for high-end users, including better visibility over connections and signals, adding confidence to the workflow no matter how challenging the environment. It additionally gives you access to our new Long Range Mode, offering better video quality at longer distances. A 5-pin USB adapter, sold separately, allows for effortless and wireless camera-control setup when using SmallHD Smart Monitors.
The included Transmitter, our most compact design ever, and the Receiver are cross-compatible with the entire Bolt 4K Series – including Bolt 4K, Bolt 4K LT, and the Bolt 4K Monitor Modules – giving you the option to expand your workflow requirements. Link up to 6 receivers to one transmitter, or unlimited receivers when used in Broadcast Mode (available on MAX models).
Bolt 6 LT offers three line-of-sight options: 750 ft., 1500 ft., and the MAX Set, which can be configured for up to 5,000+ ft. Additionally, you can upgrade your set to include Gold or V-Mount Battery plates. And while the Bolt 6 LT Set has both 4K HDMI and 1080p SDI input and outputs, you can also select the Bolt 6 LT HDMI model if your production needs require HDMI only.
About 6GHz
Wifi routers, cell phones, IOT devices, and competitor wireless video systems are among the many devices that use the 5GHz frequency to communicate wirelessly, making it a highly crowded space where you’ll likely encounter frequent interference and even video dropouts. Bolt 6 uses the newly opened 6GHz wireless frequency for a dramatically quieter wireless environment (though it can still be set up in 5GHz Mode for backwards compatibility). In 6GHz Mode, Bolt 6 users will access faster connections and less interference for a better wireless experience.6GHz frequency is now available in the US and Canada under UNII-5 government specifications. More countries will open the 6GHz frequency in 2023.
What's in the box?
- 1x Bolt 6 LT HDMI 750 TX V-Mount
- 1x Bolt 6 LT HDMI 750 RX V-Mount
- 1x Lightstand Adapter ¼-20in
- 1x Hot Shoe Adaptor
- 1x (Bit 118) 2pin Conn. to PowerTap - 18in/46cm Cable
- 2x Ultra Thin HDMI Male Type A (Full) - HDMI Male Type A (Full) 18in/46cm Cable
- 2x SDI - BNC to BNC Cable, 10in
- 1x PSU 2pin Conn. to 18W AC Adapter (Int) - 6ft Cable
- 1x Teradek Case Large - Bolt 6 LT TX/2RX
- 1x USB Male Type A (Full) - USB Male Type B (Micro) -3ft Cable
Product Specification
| Audio Formats | 2-Channel 24-Bit 48 kHz |
| Dimensions | Transmitter: 103 x 60 x 33 mm / Receiver: 122 x 94 x 27 mm |
| Encryption | 256-Bit AES |
| Frequency Band | Supports 6 GHz Frequency Band |
| Input | Output | Antenna I/O Transmitter: 2 x RP-SMA Female Receiver: 5 x RP-SMA Female Video I/O Transmitter: 1 x HDMI 1.4b Input Transmitter: 1 x HDMI 1.4b Output Receiver: 1 x HDMI 1.4b Output |
| Mounting | V Mount |
| Power Input | 6 to 28 VDC |
| Supported Video | HDMI (10-Bit 4:4:4/4:2:2 RGB, YCC) UHD 4K: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 480p: 60/59.94 576i: 60 480i: 59.94 |
| Transmission | 750 |
| Weight | Transmitter: 206 g, Excluding Battery Plate Receiver: 292 g, Excluding Battery Plate |
