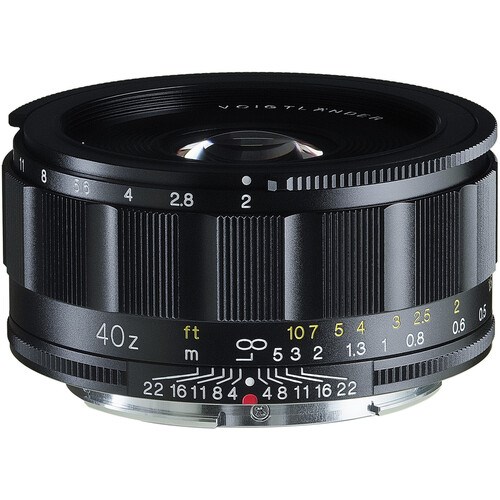

Voigtlander 40mm f2 Septon Aspherical Lens for Nikon Z

Voigtländer SEPTON 40mm f2 Aspherical Key Features:

• Classic SEPTON revival inspired by 1950s Voigtländer SLR optics
• Compact pancake-style standard prime for full-frame cameras
• Wide and bright f2 maximum aperture for depth of field control
• 7-element, 6-group optical design with added aspherical surface
• Orthometar-type configuration for low distortion rendering
• 10-blade aperture diaphragm for naturally circular bokeh
• 0.3m minimum focusing distance for close framing
• Aperture ring with 1/3-stop increments for exposure accuracy
• Electronic contacts transmit Exif and stabilisation data
• 52mm filter thread for attaching optional filters and accessories
• All-metal barrel ensures structural rigidity
• Dome-shaped metal hood reduces stray light

What’s new?

The SEPTON 40mm f2 Aspherical revives the historic SEPTON name in a compact full-frame standard prime. It retains the Orthometar-type structure known for its short optical length and low distortion, and adds one aspherical element to the six-element formula to improve correction at f2. The result is an f2 standard lens that maintains a compact size without compromising edge consistency or contrast. Electronic contact also now integrates the lens with contemporary camera bodies, enabling Exif data recording and communication for stabilisation systems. This combination of classic optical layout and modern electronic integration marks a notable step forward in the brand’s compact full-frame prime lineup.

Optical design and close focusing

Following an Orthometar layout, the SEPTON 40mm f2 Aspherical lens features 7 elements arranged into 6 groups. This structure keeps the optical path short, which naturally controls distortion across the 40mm field of view. Voigtländer has also now added one aspherical element to improve performance at f2, tightening contrast and reducing spherical aberration when shooting wide open. And, thanks to the 10-blade diaphragm, this lens maintains a near-circular aperture through much of its range.

A minimum focusing distance of 0.3m allows users to work closer than most compact standard primes of this size. The 1:5.3 reproduction ratio provides enough scale to capture small objects and tabletop subjects without additional accessories. Optical correction is consistent at close range, maintaining edge definition even when close focusing.

Mechanical construction and handling

For a more rigid feel in use, Voigtländer has given the SEPTON 40mm f2 Aspherical lens an entirely metal barrel. Its short overall length avoids adding bulk to users' setups and is well-balanced, particularly on modern mirrorless bodies. The focus mechanism is also mechanically coupled, providing a direct, tactile response to ring movement. And, the aperture ring operates in 1/3-stop increments for more accurate exposure control.

Electronic integration

Electronic contacts transmit focal length and aperture data to the camera body. This ensures Exif information is recorded correctly and allows compatible in-body stabilisation systems to compensate based on accurate focal length input. The lens remains fully manual in operation while communicating with modern digital cameras.

What's in the box?

• 1 x Voigtlander 40mm f2 Septon Aspherical Lens
• 1 x Screw-in Metal Hood
• 1 x Front Cap
• 1 x Rear Cap

FAQs:

Does the SEPTON 40mm f2 Aspherical support autofocus?

No. The lens is fully manual focus. Focus adjustment is performed using the mechanically coupled focus ring, which provides consistent resistance for accurate placement. Electronic contacts transmit shooting data, but focusing itself remains manual.

Can I use filters with this lens?

Yes. The lens features a 52mm front filter thread. This allows the use of common screw-in filters such as protective, polarising, or neutral density filters. The thread size supports compact filter systems without increasing overall bulk.

Is the lens suitable for close-up photography?

The 0.3m minimum focusing distance and 1:5.3 maximum reproduction ratio allow relatively tight framing for a standard lens. While not a dedicated macro optic, it supports tabletop subjects and small details with controlled perspective. The optical design maintains correction at closer distances, preserving contrast and edge clarity.

Does the lens transmit shooting data?

Yes. Electronic contacts transmit focal length and aperture information to the camera body for Exif recording. This integration also supports communication with compatible in-body stabilisation systems for more accurate correction.

Is the hood included, and does it significantly increase the overall size?

A screw-in metal hood is included. Its dome-shaped profile maintains the lens's compact proportions while reducing stray light entering the front element. It does not substantially increase the overall size.
