The YoloLiv YoloBox Portable Live Stream Studio is a great companion for live-broadcasting over three varying platforms. As a high-performance, compact production studio, the YoloBox can connect to up to five video sources and pairs to the local area network via Wi-Fi, Ethernet, or LTE (requires SIM card and data plan - not included). The LCD touchscreen display portrays the streaming image alongside the control interface for easy transitions during your live production. The YoloBox supports 720p and 1080i/p inputs and can stream at either 540p, 720p, or 1080p via the H.264 codec. You can also record your stream direct to .mp4 format to a separate SD card (up to 128GB) - utilising the built-in SD card slot. An HDMI out gives you the option to display your stream locally on an HDMI device, a great way to gain a better perspective of what the audience is seeing.
YoloLiv YoloBox Portable Live Stream Studio Key Features:
- Full HD live streaming via Ethernet, Wi-Fi, LTE Dongle
- Monitor, switcher, recorder, and encoder - all in one
- Touchscreen control interface and streaming encoder
- Simultaneous multi-platform streaming
- Switch between up to five video sources
- Picture-in-picture and watermarks available for easy-streaming
- Ability to add custom graphic layers
- Supports, 540p, 720p, and 1080p output
- Reliable H.264 streaming format
- Custom RTMP supported for YouTube streaming
- Record internally to an SD Card (up to 128GB)

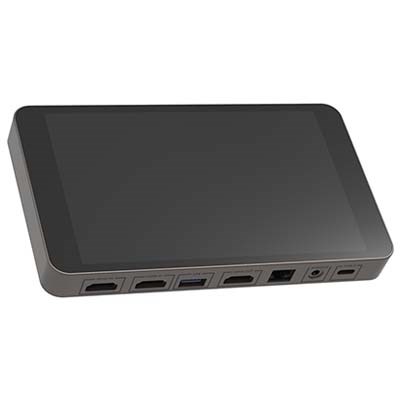

- Two HDMI and USB In, and one HDMI out
- Features an HDMI Confidence Monitor Out
- Independent audio input/output
The YoloLiv Yolobox Pro is now available to order!
Expanded YoloLiv YoloBox Portable Live Stream Studio Key Features:
Connecting your Yolobox to the internet is a pretty seamless process. You have the option of utilising the integrated RJ45 Ethernet port, Wi-Fi signal, or mobile data connection with an additional SIM card (not included). When you are streaming via a 4G network, it is best to use the included dongle (cellular modem) to gain the most reliable, secure connection.
The YoloBox allows up to five inputs, with four of them being physical sources via 2 HDMI inputs, 1USB, and 1 SD card. The last input can be from a relevant web source, a great way to mix up your content whilst adding increased production value to your live stream. Using multiple camera angles and positions is a great way to promote a more dynamic viewing experience.
Effortless Streaming Control

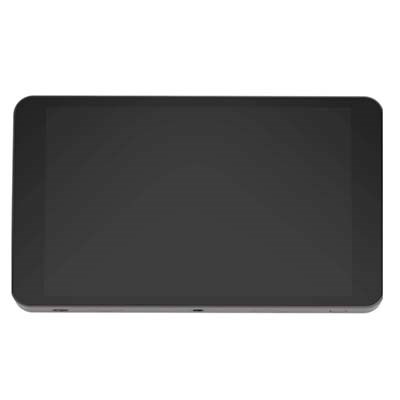

The large 18cm touchscreen interface allows easy streaming via user-friendly controls. The YoloBox works efficiently as a switcher, with a variety of picture-in-picture templates along with graphic layers that can be added to the frame. It also has a built-in encoder for live streaming and can record your stream onto separate SD cards.
Also, an internal battery can power the device for approximately three hours and charges via USB connection. This USB charging slot is separate from the USB input, meaning that it does not affect the number of video inputs when streaming.
Output And Streaming Potential
When streaming, the YoloBox first outputs your feed to the YoloLIV platform, where it automatically forwards your feed to a maximum of three destinations simultaneously. All of the major streaming platforms are supported to include Facebook Live, Youtube, and Twitch, as well as YoloLIV. Youtube live streams can be done by accessing custom RTMP settings, whilst the included dongle allows for 4G Cellular connection. The dongle, or cellular modem, is compatible with Verizon, T-Mobile, and AT&T.
The YoloBox works great for such a varied range of live streams. If you are a gamer, this device will be sure to up your Twitch game, or if you are a musician, you can recreate live gigs in the comfort of your own home. It has even been used for streaming various Religious services for people who cannot access them in person. For larger-scale events such as conferences, guest lectures and live music, the YoloBox gives you the ability to reach out to a much wider audience all across the world.
What's in the box?
- 1 x YoloLiv YoloBox Portable Live Stream Studio
- 1 x USB-C Charger Cable
- 1 x Hot Shoe Mount
- 1 x Sim Card Eject Pin
- 1 x Dongle (Cellular Modem)
- 1 x Storage Case
YoloLiv YoloBox Portable Live Stream Studio Product Videos:
YoloBox | Portable live streaming system | What you need to know
What types of devices is the YoloBox compatible with?
The YoloBox is compatible with inputs from DSLRs, drones, DV, GoPro, USB cameras, various Apple products, Android devices, and SD cards.
Can the USB input be used as a third camera input via a webcam?
Yes, you are able to connect a webcam to the USB input and use it as a third switchable camera-input source. Also, you can use pre-recorded video in the SD card input and web-source stream as another two video sources.
Would this be a good product to live stream a church service?
The YoloBox is a very popular product when it comes to live streaming Sunday worships and Church services. This is because of its user-friendly settings, portability and affordable price.
Can you input video at different resolutions?
The YoloBox has a built-in scaler, this means that you could input the main video feed in 1080p, but the second in 720p - or whatever combination works for you. This is something that makes this device stand out from other commercial video mixers.
