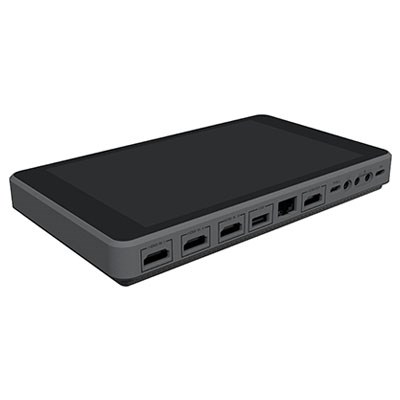

YoloLiv Yolobox Pro

The YoloLiv Yolobox Pro expands on the features of the standard version, elevating its versatility and ability to cater to a huge range of applications. The unit is a video switcher, encoder, streamer, monitor, recorder and audio mixer all in one impressively compact and portable case. Its multi-cam live streaming and switching system integrates directly with popular streaming services such as YouTube/Facebook/Twitch, and gives you the option to add graphic overlays, Side-By-Side/Split-View and much more. The Pro version features more inputs, a larger 8” LCD touchscreen display and an overall faster and more reliable performance that will suit even more demanding live broadcasts. These Pro features are designed to improve on the already versatile standard components e.g. Wi-Fi, Ethernet, or LTE connectivity, HD streaming and live editing.

YoloLiv Yolobox Pro Key Features:

• The Pro version offers 3 x HDMI Inputs & 1 x HDMI Output
• Stereo Analog input and output as well as Mono Analog input, too
• Offers both RJ45 10/100 Ethernet Input and Output
• Both USB Type-A USB 3.1 and USB Type-C USB 3.1
• Embedded audio via HDMI/USB Type-C/Wireless: 2-Channel
• A much larger 10,000 mAh built-in battery doubles battery life
• Full HD live streaming via Ethernet, Wi-Fi, LTE Dongle
• Monitor, switcher, recorder, and encoder - all in one
• Touchscreen control interface and streaming encoder
• Simultaneous multi-platform streaming e.g. Youtube and Facebook
• Switch between up to five video sources & add custom graphic layers
• Picture-in-picture & watermarks available for easy-streaming
• Supports 540p, 720p, and 1080p output for complete versatiltiy
• Reliable H.264 streaming format & custom RTMP
• Record internally to an SD Card (up to 128GB)

Expanded YoloLiv Yolobox Pro Key Features:

The Pro Interface Options

The Pro version of the YoloLiv Yolobox expands on the already vast options that are available on the standard version. Interface-wise, you have 3 HDMI inputs and 1 HDMI output. Unlike the standard version, you have both Headphone/Microphone Stereo and Mono Analog inputs and a Headphone/Microphone Stereo output. There’s both a USB Type-A USB 3.1 Gen 1 and USB Type-C USB 3.1 Gen 1 Input/Output, a RJ45 10/100 Ethernet Input/Output and 2-Channel embedded audio.

But even with these new interface features, it’s still seamless and easy process connecting the unit to the internet. You have the option of utilising the integrated RJ45 Ethernet port, Wi-Fi signal, or mobile data connection with an additional SIM card (not included). When you are streaming via a 4G network, it is best to use the included dongle (cellular modem) to gain the most reliable, secure connection. The last input can be from a relevant web source, a great way to mix up your content whilst adding increased production value to your live stream. Using multiple camera angles and positions is a great way to promote a more dynamic viewing experience.

Effortless Streaming Control

The large 8” touchscreen interface allows easy streaming via user-friendly controls. The YoloBox works efficiently as a switcher, with a variety of picture-in-picture templates along with graphic layers that can be added to the frame. It also has a built-in encoder for live streaming and can record your stream onto separate SD cards.

The Pro version offers a larger internal battery that will power your device for almost double the standard 3 hours of battery life, as well as offering charging via USB connection. This USB charging slot is separate from the USB input, meaning that it does not affect the number of video inputs when streaming.

Output And Streaming Potential

When streaming, the YoloBox first outputs your feed to the YoloLIV platform, where it automatically forwards your feed to a maximum of three destinations simultaneously. All of the major streaming platforms are supported to include Facebook Live, Youtube, and Twitch, as well as YoloLIV. Youtube live streams can be done by accessing custom RTMP settings, whilst the included dongle allows for 4G Cellular connection. The dongle, or cellular modem, is compatible with Verizon, T-Mobile, and AT&T.

The YoloBox works great for such a varied range of live streams. If you are a gamer, this device will be sure to up your Twitch game, or if you are a musician, you can recreate live gigs in the comfort of your own home. It has even been used for streaming various Religious services for people who cannot access them in person. For larger-scale events such as conferences, guest lectures and live music, the YoloBox gives you the ability to reach out to a much wider audience all across the world.

What's in the box?

YoloLiv Yolobox Pro Product Video:

FAQs:

What types of devices is the YoloBox Pro compatible with?

The YoloBox Pro is compatible with inputs from DSLRs, drones, DV, GoPro, USB cameras, various Apple products, Android devices, and SD cards.

Can the USB input be used as a third camera input via a webcam?

Yes, you are able to connect a webcam to the USB input and use it as a third switchable camera-input source. Also, you can use pre-recorded video in the SD card input and web-source stream as another two video sources.

Would this be a good product to live stream a church service?

The YoloBox is a very popular product when it comes to live streaming Sunday worships and Church services. This is because of its user-friendly settings, portability and affordable price.

Can you input video at different resolutions?

The YoloBox Pro has a built-in scaler, this means that you could input the main video feed in 1080p, but the second in 720p - or whatever combination works for you. This is something that makes this device stand out from other commercial video mixers.
