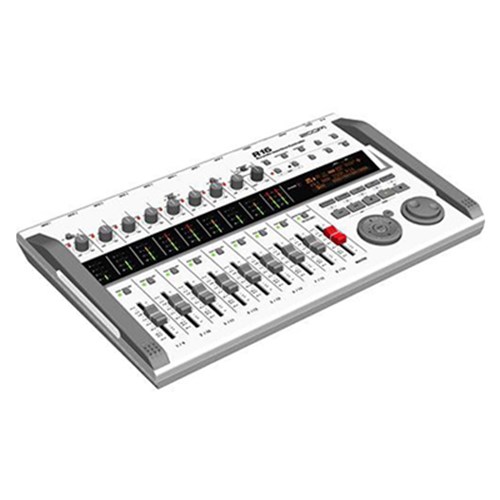

Zoom R16 Recorder Interface Controller

Zoom R16 is an incredibly versatile device with three audio production tools in one powerful unit—a fully mobile recording and studio recording solution! Designed to create studio-quality recordings at home or outdoors, the R16 recorder works as a digital multi-track recorder, a USB audio interface and a control surface. Ideal for professional production as well as a musical "sketch-pad" for capturing ideas and rehearsals, this stand-alone digital multi-tracker can record up to 16 tracks and up to 8 inputs simultaneously to solid-state media. Do not bother about running out of space as it supports SD and SDHC memory cards up to 32GB. The R16 by Zoom also features built-in stereo condenser microphones, over 100 built-in studio-quality effects, professional-grade mastering effects, and much more to open up great deal possibilities for musicians, filmmakers and photographers. It can be powered using 6 AA batteries, included adaptor or USB connectivity.

Zoom R16 Recorder Interface Controller Key Features:

• Digital multi-track recorder and mixer, USB 2.0 computer audio interface and control surface
• 100+ built-in studio effects and guitar amp/effects models for polishing tracks
• USB connectivity for file transfer or direct-to-computer recording
• Built-in stereo condenser microphones for a one-button recording solution
• Provides 8 tracks simultaneous recording, 16 tracks playback at home or on-the-go
• Built-in stereo condenser microphones for convenient field recording
• Supports SD and SDHC cards up to 32 GB for up to 100 hours of recording
• 8 mic/line level inputs on XLR/TRS combo connectors to let you record an entire band
• Hi-Z input for direct connection of guitar or bass
• High-definition 24-bit/96kHz recording capability using digital audio software
• Full mixing and transport controls for Cubase, Logic, Ableton Live, and other DAWs
• 8-in/2-out USB audio interface for easy compatibility with Macintosh/Windows computers
• Backlit LCD with contrast control for easy viewing in low-light environments
• Powered by 6 AA batteries; long-life alkaline batteries for up to 4.5 hours of continuous use (AC adapter also included)
• Sync two R16 units via USB for 32 tracks of playback and recording of 16 tracks simultaneously

Expanded Zoom R16 Recorder Interface Controller Key Features:

Easy Multitrack Recording

As a stand-alone digital multi-track recorder, R16 lets you produce professional recordings with 16 tracks for playback and recording right at your fingertips. It allows recording up to 8 tracks simultaneously, which makes capturing a full live band or field recording a breeze. The ability to sync two R16s for simultaneously 16-track recording expands the functionality to a whole new level.

USB Audio Interface

R16 can be connected to your computer via USB 2.0 and used as an audio interface for recording your DAW. Using the onboard inputs, you can start recording up to 8 production tracks at a time by loading your favourite DAW or use the included Cubase 4 LE software. The USB port acts as an 8-input/2-output channel interface to record high-definition audio with a sampling frequency of 44.1 kHz 16/24-bit WAV when recording to SD Card and 96 kHz 24-bit when recording into a computer.

DAW Control Surface

Connect the R16 to your computer to use it as a hands-on control surface to mix down tracks and other advanced audio editing operations. It uses Mackie's Control emulation, which operates with many popular DAW software packages, including Cubase, Sonar, Logic, Digital Performer, and more. With dedicated transport buttons and jog/shuttle, it minimizes your dependency on keyboard and mouse and focuses more on the creative part of the work.

Support for SD Cards

The device supports up to 32GB SD and SDHC memory cards for a maximum of 100 track hours of recording. The ability to use SD cards for recording makes it a lightweight, portable solution without the concerns of dealing with a hard drive crash. Pick a respective SD card for a specific recording session and back it up using a USB memory stick.

What's in the box?

• 1 x Zoom R16 Recorder Interface Controller
• 1 x Operation Manual
• 1 x AC adapter (Zoom AD-14)
• 1 x USB Cable
• 1 x Steinberg Cubase LE DAW Software

FAQs:

Can I connect two R16 units via USB to record 16 tracks at the same time?

Yes, you can do this. For recording more than 8 tracks simultaneously, you can connect two R16s using a USB cable. However, a gap in start timing in recording using two R16 units may occur and is not guaranteed.

Can I record multiple takes on the same track on Zoom R16?

Yes, it is possible. Simply switch the file selection for the track to "Not Assign" to record a new file. For each project, the recorded files are saved separately, from which you can select the file to play a specific track. This allows you to select the best take from all the vocal or guitar solo takes saved.

Can I use the audio interface function and the control surface function at the same time?

Yes, it is possible. R16 allows you to use the fader settings of the mixer and the transport functions while carrying out playback or recording with DAW software. You can perform all basic DAW software operations easily.

Can I use the control surface function with DAW software also other than the included Cubase LE?

Yes, you can. R16 as a control surface uses the Mackie Control emulation mode. Therefore, the control surface function can be used with any of your preferred DAW software that is compatible with Mackie Control. You can use Logic, Sonar, Live, Digital Performer and others.
