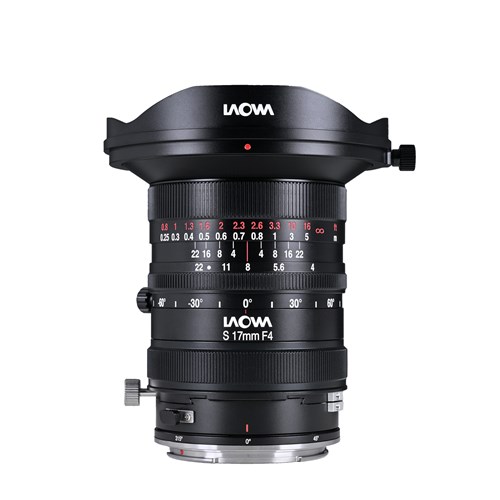

Laowa 17mm f4 Zero-D Shift Lens for Hasselblad XCD

What’s new?

The Laowa 17mm f4 Zero-D Shift introduces a dedicated perspective-control lens that combines a 17mm ultra-wide focal length with ±8mm of shift movement on medium-format sensors. Previous iterations of Laowa’s Zero-D lenses include the 12mm and 15mm focal lengths. The Zero-D optical design minimises distortion while the large image circle maintains coverage during shift adjustments. This enables straight vertical lines to be maintained while photographing architecture with the camera level.

Operational refinements include a rotating barrel that aligns the shift direction with the composition. A detachable Arca-Swiss lens support stabilises the system during shift adjustments and stitched panorama capture. The standard 86mm filter thread allows a variety of circular filters to be attached directly without specialised holders. Together, these features provide a practical tool in Laowa’s line-up of perspective-correcting lenses.

Zero-D optical design

The Laowa 17mm f4 Zero-D Shift Lens uses Laowa’s Zero-D optical architecture to minimise distortion across the frame. Distortion is corrected optically rather than digitally, preserving straight architectural lines across the frame. This design preserves structural accuracy and prevents edge stretching associated with software correction. Architectural elements such as walls, windows, and building edges maintain natural proportions across the frame. The large image circle ensures full coverage across medium-format sensors while maintaining geometric accuracy.

Shift movement and perspective correction

The ±8mm shift mechanism moves the optical axis relative to the sensor while the camera remains level. When photographing tall structures, the lens can shift upward instead of tilting the camera. Because the sensor plane remains parallel to the building, vertical lines remain parallel rather than converging toward the top of the frame. This feature preserves the natural geometry of architectural subjects. Shift movement can also be applied horizontally to refine framing without repositioning the camera.

Panoramic stitching capability

The lens’s large image circle allows photographers to capture multiple frames by shifting the lens across the optical projection while the camera remains fixed. Each frame maintains the same perspective because the camera position does not move. This feature minimises parallax differences between images. The captured frames can then be stitched into a high-resolution composite image.

Mechanical construction and handling

The rotating barrel allows the shift axis to be aligned vertically for architectural correction or horizontally for panorama capture. A detachable Arca-Swiss lens support allows the lens to be mounted directly to a tripod. The support maintains alignment during shift movements and stabilises the camera when capturing stitched panoramas.

Filter compatibility and close-focus operation

The lens includes a standard 86mm filter thread, allowing photographers to attach circular polarising or neutral density filters. Its 14-blade diaphragm also produces defined sunstars around point light sources, making the lens well-suited to night architecture and cityscape photography. A minimum focusing distance of 25cm allows foreground subjects to be incorporated into wide compositions. Combined with shift adjustments, this allows precise control over spatial relationships between the foreground and background elements.

What's in the box?

• 1 x Laowa 17mm f4 Zero-D Shift Lens
• 1 x Detachable Arca-Swiss Lens Support
• 1 x Lens Caps
