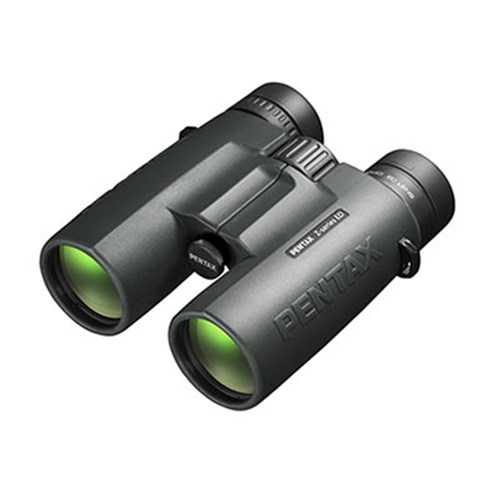

Pentax ZD 10x43 ED Binoculars
The Z-series is the flagship of the entire Pentax binocular range, offering premium-level quality and beautiful clarity in a rugged, magnesium-alloy body that's built for outdoor use. The Pentax ZD 10x43 ED binoculars feature a number of optical coatings to ensure edge-to-edge sharpness, brightness and resolution in all weather and lighting conditions. More
Thinking of upgrading? Trade in today
Finance options available
The Z-series is the flagship of the entire Pentax binocular range, offering premium-level quality and beautiful clarity in a rugged, magnesium-alloy body that's built for outdoor use. The Pentax ZD 10x43 ED binoculars feature a number of optical coatings to ensure edge-to-edge sharpness, brightness and resolution in all weather and lighting conditions.
Key Features: Pentax ZD 10x43 ED Binoculars
- Type: Full-size roof
- 10x magnification
- Objective lens diameter 43mm
- New fully multi-coated optics
- New enhanced light transmission coatings
- Phase correction
- Protective lens coating
- Waterproof, nitrogen-filled and unique hydrophobic coating
- Hybrid aspherical lens element
- ED element (extra-low dispersion glass)
- Magnesium alloy construction
- 2m minimum focusing distance
- Multi-stop twist-up eyecups
New Fully-multi-coated optics
Fully multi-coated lenses serve the essential purpose of maximizing the amount of light passing through a lens, thereby prevent flare and ghosting from interfering with your view. Pentax applies multiple layers of coatings to every surface of every element and prism in the full Sport Optics line-up. These fully-multi-coated optics assure the maximum light transmission resulting in a clear, crisp view of the world.
New Enhanced Light Transmission Coatings
Pentax binoculars take quality optics to the next level by applying a new, optimized film-deposition technology on lens and prism surfaces resulting in increased light transmission which creates bright images with accurate colour rendition.
Protective Lens Coating
All optical surfaces are delicate and must be handled with care to prevent scratching. To add to the durability of the Z- and S-series Water Proof binoculars, Pentax has added a protective, nano technology coating that helps deflect water, oil, dust and dirt. This allows Pentax binoculars to withstand the harshest viewing conditions.
BaK4 prisms
Due to its outstanding refractive index, the BaK4 glass prism found in all Pentax Sport Optics is highly acclaimed for its perfectly round exit pupil and clear, unvignetted image.
Phase Correction
The complex optical design of roof prism binoculars provide durable, compact, yet lightweight design but require a higher level of optical perfection. A phase-correction coating is applied in the full range of roof prism binoculars to maximize image viewing quality.Pentax Waterproofing
Pentax waterproof products are fully sealed and purged with laboratory grade nitrogen to provide a fog proof view in the harshest weather conditions. With a JIS Class 6 rating, Pentax waterproof binoculars can even be submerged in up to 3 feet of water.
Unique Hydrophobic Coating
Water droplets on a lens have a negative influence on the ability of light to enter the objective lens. By using a unique water repellent coating on all outer lenses we make water drops "bead" into small, deformed droplets. The deformed droplets cause less distortion and "slide" more easily off the lens. Your binocular remains fully functional even in rain, snow, fog or condensing breath.
Inner Focus Optics Design
This sophisticated optical design is critical to low-maintenance and long life guarantee. Exposure to airborne particles and moisture is avoided, thereby ensuring that no outside influences can penetrate the housing and disrupt functionality.Hybrid Aspherical lens elements
Edge-to-edge sharpness is a vital element to comfortable viewing. To achieve this, we utilise aspherical lens elements in our eyepieces. This is a specially shaped lens design that reduces aberration to a minimum. Hybrid-Aspherical lens elements have the additional advantage of superior functionality while being lightweight and compact.
ED-Objective lenses
To build superior binoculars the ultimate challenge is to avoid colour errors (Chromatic aberration). Several techniques are available but by far the best results can be achieved by using ED (extra low-dispersion) glass in the objective lens. ED-lenses have a high breaking index with minimal dispersion. The result is comparable to the use of Apochromatic lenses; but now only 2 lens elements are used. The advantage of this technology is clear; the binocular is lighter in weight and more compact.
Dielectric coating
Dielectric Coating of the prisms serves to enhance the colours of the image. Multiple layers of surface correction coatings are "vaporized" onto the surface of the prisms in a vacuum. This maximizes the quality of visible light in the colour spectrum between infra-red and ultra-violet as it passes through the glass.
Nitrogen purged
Nitrogen is a chemical element and a colourless, odourless and tasteless gas. It contains very little humidity and is therefore used to "purge" binoculars and spotting scopes of the high humidity air that is part of our environment. Due to the low humidity factor, nitrogen prevents condensation from forming on the internal lenses of optical instruments during phases of rapid temperature change. Furthermore, because nitrogen is purged into the optical instrument at slightly above atmospheric pressure, dust and other miniscule particles are prevented from entering the housing.
Superb impact resistance
The body is made from magnesium, which adds toughness while keeping the binoculars light. In addition, the exterior rubber coating provides the binoculars with superb resistance to shocks and impacts.
Long eye relief design
The long eye relief offered in all Pentax Sport Optics allows the viewer to see the entire field of view clearly and effortlessly. This is especially beneficial to eyeglass wearers, and allows viewing for extended periods of time without added eye strain.
Other Features
Helicoid four-stop eyepiece rings that permit fi ne adjustment for maximum viewing comfort.Short minimum focusing distance for easy observation of nearby subjects.
Locking dioptre adjuster guards against accidentally moving the dioptre setting. Back to top
Product Specification
Exit Pupil [mm] | 4.3 |
Eye Relief [mm] | 17.0 |
Field Of View At 1000m [m] | 105 |
Field Of View, Real [degrees] | 6.0 |
Fog Proof | Nitrogen Filled |
Included Accessories | Objective and eyepiece caps, case, strap |
Is Good For | Bird Spotting, Nature Observation |
Magnification [x] | 10 |
Minimum Focus Distance [m] | 2.00 |
Mount Connection | Yes |
Objective Lens Diameter [mm] | 43 |
Optical Coating | Fully Multi-coated and Phase coated prisms |
Prism Type | Roof |
Relative Brightness | 18.5 |
Size [mm] | 146 x 126 x 53 |
Twilight Number | 20.7 |
Type | Binoculars |
Waterproof | Yes (JIS Class 6) |
Weight [g] | 730.00 |
Manufacturers Link | Pentax |
