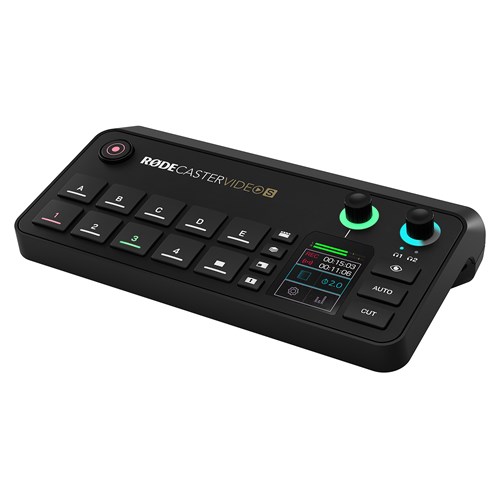

Rode Rodecaster Video S

The RODECaster Video S is a compact all-in-one video and audio production console that integrates a professional mixer, multi-source video switcher, and broadcast controller. Featuring an octa-core processor, Revolution Preamps, and APHEX processing, it provides complete creative control in a single desktop device. Designed for 1080p production, it supports NDI, Wi-Fi 6, and USB-C connectivity for recording, streaming, and post-production.

RODECaster Video S Key Features:

• All-in-one production console for video and audio content creation
• High-performance octa-core processor for smooth video and audio processing
• Supports up to four video inputs via three HDMI and one USB-C UVC port
• Configurable HDMI output for preview, program, multiview or input feeds
• NDI streaming support with PTZ camera control and four NDI inputs
• Integrated APHEX processing including EQ, compressor, gate and limiter
• Dual Neutrik combo inputs with Revolution Preamps offering 76dB gain range
• Dual wireless receivers compatible with RØDE Series IV microphones
• Dual USB-C audio interfaces for connecting two computers or mobile devices
• Wi-Fi 6 and Gigabit Ethernet for direct RTMP/RTMPS live streaming
• Record to an external SSD with ISO recording for up to four video inputs
• Supports up to 9 simultaneous stereo audio channels and 17 total sources
• 2-inch high-resolution touchscreen with intuitive rotary encoder control
• 24GB internal storage for video, image, and audio media playback

What’s in the box?

• 1 x RODECaster Video S
• 1 x Power Supply
• 1 x SuperSpeed USB-C to USB-C Cable

FAQs

What video connections and resolutions does the RODECaster Video S support?

The console includes three HDMI 1.4b inputs and one USB-C UVC input, accepting up to four simultaneous 1080p sources. Output is available through a configurable HDMI port supporting preview, program, or multiview modes. Each HDMI and USB input includes frame rate and format conversion for seamless mixing, with supported frame rates ranging from 23.98 to 60 fps. Colour depth extends to 4:4:4 RGB at 8-bit for precise visual fidelity.

Can the RODECaster Video S handle multiple camera inputs and scenes?

Yes. The system supports up to four live inputs with nine simultaneous layers for previews and program outputs. Users can assign two downstream keyers, two chroma keyers, one luma keyer, and two media players to manage overlays, transitions, and scene composition. The onboard 24GB storage enables smooth playback of MP4, PNG, JPG, and WAV files directly from the device.

What are the audio specifications of the RODECaster Video S?

Equipped with two Neutrik combo inputs and Revolution Preamps, it delivers ultra-low noise at -131.5 dBV and up to 76dB of gain, supporting microphones, instruments, and line-level sources. Each channel benefits from APHEX processing, including compressor, EQ, de-esser, high-pass filter, Aural Exciter, and Big Bottom. It supports 48kHz/24-bit recording and 48kHz/32-bit streaming, with up to 9 stereo channels and 11 output routes.

Can I record or stream directly from the unit?

Video is recorded in H.264 MP4 format with embedded AAC stereo audio, while ISO recording supports up to 4 independent inputs and one program feed at 1080p30. Audio is captured as WAV files, either as a stereo mix or nine separate tracks. Streaming can be delivered directly to YouTube, Twitch, Facebook, and custom RTMP/RTMPS servers via Wi-Fi 6 or Ethernet, ensuring broadcast-quality performance.

What software and remote features are available?

The companion RODECaster App enables detailed remote configuration, including custom scene building, audio routing, graphic overlays, and automatic scene switching triggered by sound levels. It also provides complete mixer control, network configuration, and over-the-air updates. The RODECaster Video S integrates easily into hybrid setups via Ethernet or USB, combining precise software control with on-device operation.
