The UTX-B03 body pack transmitter is part of a complete audio system, offering the quality of digital audio combined with the reliability of analogue FM. The UTX-B03 offers wide frequency coverage across a range of channels. Easy-to-use features include a large display, auto channel setting, USB connection for power supply, and line input.

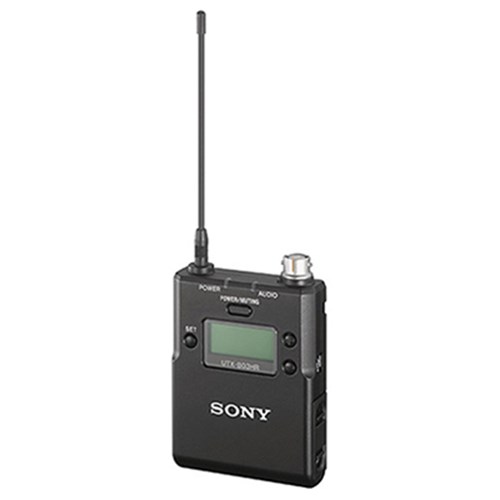

Key Features: Sony UTX-B03HR/K33 UWP-D Body Pack Transmitter
The UWP-D Series system, of which this transmitter forms part, provides superb transient response performance for all studio and location audio work.
- Female SMC9-4S microphone input connector
- UWP-D digital audio processing for high quality sound, reproduces the high end faithfully
- Large and bright 11.5 mm x 27.8 mm display for ease of use
- Automatic channel setting IR Sync
- Wide frequency coverage
- True Diversity reception system from 2 independent receiver sections within the unit
- Compatibility with Sony 800 and UWP Series analogue audio receivers
- USB for external power supply or charging batteries allowing the unit to be powered by the camcorder during use
- Robust metal body for reliable use in rough operating conditions
- Line Input available
- Oscillator Type: Crystal-controlled PLL Synthesizer
- Antenna Type: 1/4 wave length wire
- Type of Emission: F3E
- Carrier Frequencies: Europe, UAE, South Africa, Australia, Malaysia, Vietnam, New Zealand
- UTX-B03/33: 566.025 MHz to 633.000 MHz (not available in New Zealand)
- RF Power: Americas, Europe, UAE, South Africa, Australia, Malaysia, Vietnam, New Zealand, China
- Input Connector: Sony SMC9-4S (female)
- Reference Input Level:
- MIC: -60 dBV (at 0-dB attenuator level)
- LINE: +4 dBu
- Audio Attenuator Adjustment Range: 0 dB to 27 dB (in 3-dB steps): Mic input
- Frequency Response: Americas, Europe, UAE, South Africa, Australia, Malaysia, Vietnam, New Zealand
- Transmission: 23Hz to 18kHz (typical)
- Signal-to-Noise Ratio: 96dB (max deviation, A-weighted)
- Audio Delay: Approx. 0.35 msec
- Pilot Tone Signal: 32 kHz/ 32.382 kHz/ 32.768 kHz
- Display: LCD
- Power Requirements
- DC 3.0 V (with two AA-size alkaline (LR6) batteries)
- DC 5.0V (via USB micro-B)
- Battery Operating Time: Americas, Europe, UAE, South Africa
- Approx. 8 hours with Sony's AA-size alkaline (LR6) batteries at 25°C (77°F) at 30-mW
- Operating Temperature: 0°C to 50°C (32°F to 122°F)
- Storage/Transport Temperature: -20°C to +55°C (-4°F to +131°F)
- Dimensions (W x H x D): 63 x 82 x 20 mm (excluding the antennas)
- Weight: Approx. 151 g (including batteries)
Make sure you're using radio frequencies responsibly:
Read our blog post here about how to make sure you don't fall foul of the law when using radio frequencies with microphones.
