Product Code: 3284763

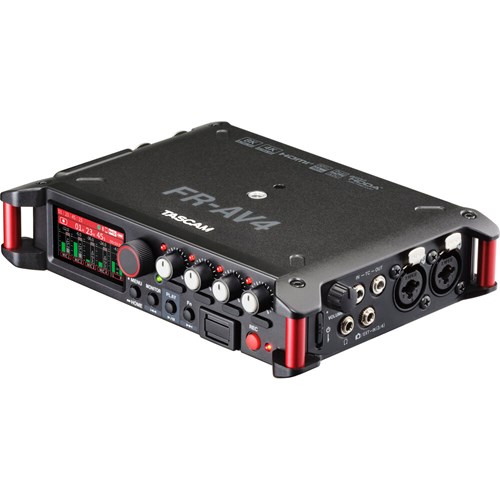

The Tascam FR-AV4 Field Recorder combines professional-grade 32-bit float recording, HDMI timecode sync, and advanced routing within a compact aluminium body. It delivers 133dB of dynamic range through Ultra HDDA preamps and dual A/D converters for pristine audio in any environment. With flexible powering options, intuitive touchscreen control, and full 6-in/2-out USB-C interface support, the FR-AV4 is built for modern production sound.
Tascam FR-AV4 Field Recorder Key Features:
- 4-channel 32-bit float field recorder with integrated 6-track mixer
- Ultra-low-noise Ultra HDDA preamps with 133dB dynamic range
- 32-bit float and 24-bit PCM at up to 192kHz
- HDMI and timecode sync for perfect camera alignment
- Automatic camera record trigger via HDMI
- Ambisonics mode for immersive VR and 360° recording
- Wireless app control and monitoring with AK-BT2 adapter
- 6-in/2-out USB-C interface for streaming and post-production
- EQ, limiter, noise gate, and delay for on-board audio shaping
- Runs on 4 AA batteries, USB bus, or optional AC adapter
- Quick-swap battery trays and rugged aluminium body
High-Headroom Recording
With the Tascam FR-AV4 Field Recorder, each XLR/TRS input uses an Ultra HDDA preamp and dual converters to achieve clean gain with minimal noise. The 32-bit float format means you never have to worry about clipping, as levels can be corrected later without distortion. Whether recording interviews or high-impact effects, the FR-AV4 preserves full detail and dynamics across a 133dB range.
Precise Camera Sync
HDMI and timecode integration keep audio perfectly locked to video, eliminating post-sync guesswork. Record Trigger starts and stops recording automatically with supported cameras, so no takes are missed. For multicam work, two FR-AV4 units can cascade over HDMI for eight synced inputs — ideal for large productions.
Flexible Audio Control
A clear touchscreen and jog wheel provide fast access to channels, levels, and routing, even during mobile shoots. Built-in EQ, limiter, and low-cut filter let you refine sound before recording, reducing the need for post-processing. The adjustable input/output delay aligns signals when combining feeds from different devices.
Connected for Any Setup
With its 6-in/2-out USB-C interface, the FR-AV4 doubles as a computer or mobile audio interface for editing or streaming. Add the optional AK-BT2 adapter to control and monitor wirelessly through the Tascam Recorder Connect app. A 3.5mm CAMERA/EXT input with plug-in power supports lav mics, while HDMI and line outputs feed external recorders or monitors.
Reliability in the Field
The FR-AV4’s durable aluminium chassis withstands on-location use, while locking HDMI and USB ports prevent accidental disconnection. Additionally, Auto File Save protects recordings by updating every 20 seconds, ensuring data isn’t lost if power is interrupted. Swappable BH-4AA battery trays enable quick changes to keep rolling between takes, so you never have to miss a moment.
What’s in the Box?
- 1 x Tascam FR-AV4 4-Channel 32-Bit Float Field Recorder
- 1 x Tascam BH-4AA Battery Holder for FR-AV4
FAQs:
Why is a 32-bit float important on the Tascam FR-AV4?
A 32-bit float records a much wider dynamic range than 24-bit files, allowing you to capture unpredictable levels without distortion. Quiet sounds stay clean, and loud transients won’t clip, which is vital in uncontrolled environments like live sets or outdoor shoots.
How does HDMI timecode improve workflow with the Tascam FR-AV4?
HDMI timecode keeps audio frame-accurate with video, removing the need for manual alignment later. When connected to a compatible camera, HDMI Record Trigger starts and stops both devices together, ensuring every take is perfectly in sync.
How does the Tascam FR-AV4 handle extended shoots?
The Tascam FR-AV4 is powered via four AA batteries, USB-C, or an optional AC adapter. The BH-4AA battery trays are hot-swappable, meaning you can change batteries mid-production without interrupting recording.
Is the Tascam FR-AV4 suitable for VR or spatial audio?
Absolutely. Ambisonics mode records A- or B-format audio for VR, AR, or 360° projects, capturing spatial cues for accurate sound placement during post-production.
Can the FR-AV4 be used as an interface?
Yes. When connected via USB-C, the Tascam FR-AV4 functions as a 6-in/2-out audio interface for Mac, Windows, iOS, or Android, letting you record, stream, or mix directly to a computer or mobile device.
Back to topProduct Specification
| Channels | 6 (4 Inputs + Stereo Mix) |
| Dimensions | 184 × 42 × 130mm |
| Included Accessories | 1 x Tascam BH-4AA Battery Holder |
| Inputs | 4 x XLR/TRS Combo, 1 x 3.5mm CAMERA/EXT Input (Mono/Stereo, Plug-In Power) |
| Outputs | 1 x 3.5mm CAMERA/TC/LINE Output, 1 x 3.5mm Headphone Output, HDMI Output |
| Phantom Power | +24V / +48V |
| Recording Formats | BWF, WAV, Ambisonics A, Ambisonics B (FuMa/AmbiX), MP3 |
| Recording Media | SD, SDHC, SDXC (Up to 512GB) |
| Timecode | HDMI and 3.5mm TC I/O, Built-In Timecode Generator |
| Type | Field Recorder |
| Weight | 660g (Without Batteries) / 756g (With Batteries) |
