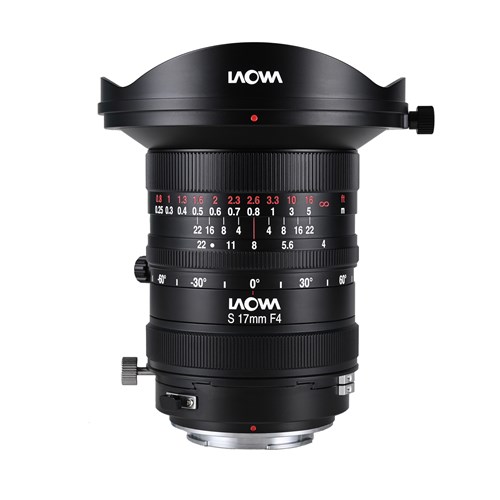

Laowa 17mm f4 Zero-D Shift Lens for Sony FE

Laowa 17mm f4 Zero-D Shift Lens Key Features:

• Ultra-wide perspective-control lens designed for architectural photography
• 17mm focal length producing a 104° angle of view on full-frame sensors
• Zero-D optical design maintains straight lines without digital correction
• Large image circle enables shift movement without significant vignetting
• ±11mm shift mechanism corrects converging vertical lines in architecture
• 360° rotating barrel aligns the shift direction with the composition
• Supports multi-frame panoramic stitching using optical axis movement
• 14-blade aperture diaphragm produces defined sunstars from point light sources
• 25cm minimum focusing distance supports foreground elements in wide scenes
• 86mm filter thread accepts circular polarising and neutral density filters
• Detachable Arca-Swiss lens support stabilises the lens during shift movements
• Manual focus design provides precise control during architectural framing
• Large image circle supports APS-C cameras with a narrower angle of view
• Compact perspective-control construction weighing approximately 770g

What’s new?

The Laowa 17mm f4 Zero-D Shift introduces a dedicated perspective-control lens that combines a 17mm ultra-wide focal length with ±11mm of shift movement. Previous iterations of Laowa’s Zero-D lenses include the 12mm and 15mm focal lengths. The Zero-D optical design minimises distortion while the large image circle maintains coverage during shift adjustments. This enables straight vertical lines to be maintained when photographing architecture while the camera remains level.

Operational refinements include a rotating barrel that aligns the shift direction with the composition. A detachable Arca-Swiss lens support stabilises the system during shift adjustments and stitched panorama capture. The standard 86mm filter thread enables a variety of circular filters to be attached directly without specialised holders. Together, these features provide a practical tool in Laowa’s line-up of perspective-correcting lenses.

Zero-D optical design

The Laowa 17mm f4 Zero-D Shift Lens uses Laowa’s Zero-D optical architecture to minimise distortion across the frame. Distortion is corrected optically rather than digitally, preserving straight architectural lines across the frame. This design preserves structural accuracy and prevents edge stretching associated with software correction. Architectural elements such as walls, windows, and building edges maintain natural proportions across the frame. The 17mm focal length provides a wide field of view suitable for photographing buildings, interiors, and narrow spaces.

Shift movement and perspective correction

The ±11mm shift mechanism moves the optical axis relative to the sensor while the camera remains level. When photographing tall structures, the lens can shift upward instead of tilting the camera. Because the sensor plane remains parallel to the building, vertical lines remain parallel rather than converging toward the top of the frame. This maintains the natural geometry of architectural subjects. Shift movement can also be applied horizontally to refine framing without repositioning the camera.

Panoramic stitching capability

The lens’s large image circle allows photographers to capture multiple frames by shifting the lens across the optical projection while the camera remains fixed. Each frame maintains the same perspective because the camera position does not move. This feature minimises parallax differences between images. The captured frames can then be stitched into a high-resolution composite image.

Mechanical construction and handling

The rotating barrel allows the shift axis to be aligned vertically for architectural correction or horizontally for panorama capture. A detachable Arca-Swiss lens support enables the lens to be mounted directly to a tripod. The support maintains alignment during shift movements and stabilises the camera when capturing stitched panoramas.

Filter compatibility and close-focus operation

The lens includes a standard 86mm filter thread, allowing photographers to attach circular polarising or neutral density filters. Its 14-blade diaphragm also produces defined sunstars around point light sources, making the lens well-suited to night architecture and cityscape photography. A minimum focusing distance of 25cm enables foreground subjects to be incorporated into wide compositions. Combined with shift adjustments, this allows precise control over spatial relationships between the foreground and background elements.

What's in the box?

• 1 x Laowa 17mm f4 Zero-D Shift Lens
• 1 x Detachable Arca-Swiss Lens Support
• 1 x Lens Caps

FAQs

What cameras are compatible with the Laowa 17mm f4 Zero-D Shift?

This version of the lens is designed for full-frame mirrorless cameras using Sony E, Canon RF, Nikon Z, or L mounts. It can also be mounted on APS-C cameras using the same mounts, where the angle of view becomes narrower due to the smaller sensor. Because the lens is fully manual, it does not rely on electronic communication with the camera body. Photographers control focus, aperture, and shift directly through the mechanical rings and adjustment controls.

Can the lens be used on medium-format cameras?

This version of the lens is designed specifically for full-frame mirrorless camera mounts. Medium-format compatibility is available through the dedicated Fujifilm GFX and Hasselblad XCD versions of the lens. Each mount version is engineered to match the flange distance and sensor format of the system it is designed for. For medium-format cameras, the dedicated versions of the lens should be used.

Why use a shift lens instead of correcting perspective in software?

Digital perspective correction stretches pixels near the edges of the frame. This can reduce resolution and create uneven detail across the image. Optical shift correction maintains full resolution because the perspective adjustment occurs before the image reaches the sensor. This preserves image quality and structural accuracy.

Can this lens be used for panoramic photography?

Yes. By shifting the lens across the image circle while the camera remains stationary, photographers can capture multiple frames with identical perspective. Because the camera position does not move, parallax differences are reduced. The resulting images can be stitched together to create very high-resolution panoramic photographs.

Can filters be used with the Laowa 17mm f4 Zero-D Shift Lens?

Yes. The Laowa 17mm f4 Zero-D Shift Lens includes a standard 86mm filter thread, which allows circular filters to be attached directly to the front element. Photographers can use neutral density filters to control exposure or circular polarisers to reduce reflections. Unlike many ultra-wide lenses, the front element is not bulbous, so a specialised filter holder is not required. This makes filter use simpler in landscape and architectural photography.
