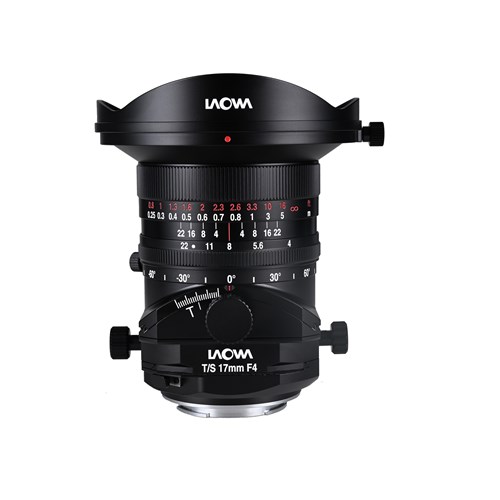

Laowa 17mm f4 Zero-D Tilt-Shift Lens for Sony FE

What’s new?

The Laowa 17mm f4 Zero-D Tilt-Shift expands Laowa’s perspective-control lens category with an ultra-wide 17mm focal length combined with ±10° tilt and ±12mm shift adjustments. Previous iterations of Laowa’s tilt-shift lenses include the 35mm, 55mm, and 100mm focal lengths. The Zero-D optical design minimises geometric distortion while the large image circle maintains coverage during lens movements. This enables perspective correction directly in-camera while controlling the focus plane through tilt adjustments.

Operational refinements include a rotating movement structure that allows for repositioning of the tilt-and-shift axes relative to the composition. A detachable Arca-Swiss tripod support stabilises the lens during shift adjustments and stitched panorama capture. The standard 86mm filter thread allows a variety of circular filters to be attached directly without specialised holders. This lens introduces an ultra-wide focal length to Laowa’s perspective-control lineup, expanding the system for architectural and interior photography.

Zero-D optical architecture

The Laowa 17mm f4 Zero-D Tilt-Shift Lens incorporates Laowa’s Zero-D optical design to minimise distortion across the frame. By correcting distortion optically rather than digitally, the lens preserves straight architectural lines and accurate structural proportions throughout the image. The 17mm focal length produces a 104° field of view on full-frame sensors, allowing large structures or confined interior spaces to be photographed within a single frame while maintaining geometric accuracy.

Tilt movement and focus-plane control

The tilt mechanism provides ±10° of angular adjustment between the optical axis and the sensor plane. Tilting the lens changes the orientation of the plane of focus relative to the scene. Tilting toward the ground allows the focus plane to intersect foreground and distant elements simultaneously. This tilt enables extended depth of field without requiring extremely small apertures. Tilting in the opposite direction creates a narrow band of focus across the scene. This effect can isolate subjects or produce miniature-style rendering in architectural and landscape images.

Shift movement and perspective correction

The ±12mm shift mechanism moves the optical axis relative to the sensor while the camera body remains level. This shift can frame tall buildings without tilting the camera upward. Because the sensor plane remains parallel to the subject, vertical lines remain parallel rather than converging toward the top of the frame. This shift preserves natural architectural geometry within the image. Shift movement can also be used to capture multiple aligned frames for panoramic stitching.

Mechanical design and handling

The lens incorporates a 360° rotating mechanism that allows the tilt and shift axes to be aligned vertically, horizontally, or diagonally, depending on the composition. A detachable Arca-Swiss lens support allows the lens to be mounted directly to a tripod. The support maintains alignment during shift movements and stabilises the camera when capturing stitched panoramas.

Filter compatibility and close-focus operation

The lens includes a standard 86mm filter thread, allowing photographers to attach circular polarising or neutral density filters. Its 14-blade diaphragm also produces defined sunstars around point light sources, making the lens well-suited to night architecture and cityscape photography. A minimum focusing distance of 25cm allows foreground subjects to be incorporated into wide compositions. Combined with tilt adjustments, this allows precise control over spatial relationships between the foreground and background elements.

What's in the box?

• 1 x Laowa 17mm f4 Zero-D Tilt-Shift Lens
• 1 x Detachable Arca-Swiss Lens Support
• 1 x Lens Caps
