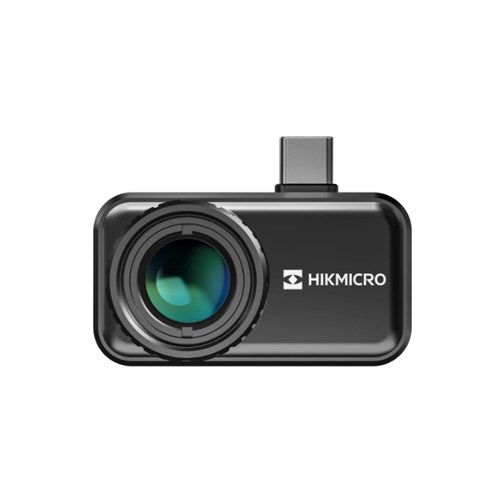

HIKMICRO Mini3 Thermal Camera for Mobile

The HIKMICRO Mini3 is a professional-grade thermal imaging camera designed for Android smartphones. It delivers smooth, high-resolution thermal video at up to 50Hz when paired with 8GB RAM devices, thanks to its 384 × 288 sensor and ≤35mK sensitivity. With a 650°C upper range, manual focus lens, and remote viewing cable, it's a compact, battery-free solution for fast, accurate inspections.

Key Features:

• Thermal resolution of 384 × 288 (110,592 pixels)
• ≤35mK thermal sensitivity (NETD) for clear detail
• Up to 50Hz frame rate with compatible 8GB RAM devices
• Wide -20°C to 650°C temperature range with ±2°C / ±2% accuracy
• Manual focus lens with 0.3 m minimum focus distance
• 26° × 19° field of view for broader coverage
• Battery-free USB-C design, powered by your smartphone
• 12 selectable colour palettes for image customisation
• Centre/Hot/Cold spot metering with 3 custom spots and areas
• Audio/visual alerts for high temperatures and thresholds
• IP40 rated and 1 m drop-tested for durability
• 550 mW low power consumption
• Compatible with the HIKMICRO Viewer App for live capture and reporting

Manual focus and measurement tools

The Mini3 uses a 10 mm manual focus lens to fine-tune image clarity on a variety of surfaces and distances. It supports full-screen measurement, hot/cold spot detection, and three user-defined zones. With a minimum focus distance of 30 cm, users can safely inspect high-voltage or heat-producing equipment from a secure distance.

Fast thermal video and mobile operation

Delivering smooth video at 50Hz (on 8GB+ RAM smartphones), the Mini3 captures moving targets and large scenes without lag. The USB-C interface supports Android devices directly, and it’s powered by the phone - no battery or charging needed. The 40 cm extension cable allows you to inspect inside panels, ducts, or hard-to-reach corners.

Demanding field conditions

The Mini3 is designed for rugged use, rated IP40 and drop-tested to 1 m. It includes a hard carry case for storage, and power draw is minimal at just 550 mW. With the HIKMICRO Viewer App, users can control the device, save media, and generate client-ready inspection reports directly from their phone.

What’s in the box?

• 1 x Hikmicro Mini3 Thermal Camera for Android Smartphones (50Hz)
• 1 x Protective Case
• 1 x 40 cm Extension Cord
• 1 x USB-C to USB-C Extension Adapter
• 1 x User Manual

FAQs

How does the HIKMICRO Mini3 differ from the Mini2 or Mini2Plus?

The Mini3 features a higher resolution sensor (384 × 288 vs 256 × 192), lower NETD of ≤35mK, and a wider temperature range up to 650°C. It also supports 50Hz video capture on 8GB RAM devices and includes a longer focal length lens (10 mm) with 0.3 m minimum focusing distance for more detailed inspections at variable ranges.

What devices are compatible with the Mini3?

The Mini3 connects via USB-C and is compatible with Android smartphones and tablets. For full 50Hz performance, the device requires at least 8GB of RAM. It does not support iOS devices.

Does the Mini3 have built-in storage or battery?

No, the Mini3 is battery-free and relies entirely on smartphone power via USB-C. It does not have onboard storage; all images and video are saved to the connected phone using the HIKMICRO Viewer App.

What app should I use with the Mini3?

Use the HIKMICRO Viewer App, available for Android, to access live thermal video, adjust settings, capture images, and generate inspection reports. The app also enables remote operation when using the extension cable in tight or hard-to-access areas.
